OEM 94V0 Aluminum Printed Circuit Board for LED Bulb
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:

94V0 Aluminum Printed Circuit Board


OEM Aluminum Printed Circuit Board


94V0 LED Bulb PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Solder Mask: Green. Red. Blue. White. Black.Yellow
Product Description

OEM 94V0 Printed Circuit Board LED Light Aluminum Led Bulb Light Pcb


Aluminum is the best choice for making the PCBs used in LED lights


The relatively low cost of aluminum compared to copper and steel, its light weight, excellent durability and its heat transferring capabilities are some of the reasons why this metal is increasingly being used in the manufacture of metal core PCBs for LED lights.


In recent times, metal core PCBs (MCPCBs) have gained popularity in the LED industry. The PCBs used in LED lighting require specific properties as the latter are temperature-sensitive. MCPCBs are today being used in high current LEDs and spotlights.


In the case of MCPCBs, the core or the base material is a metal instead of the traditional FR4/CEM1-3. In an FR4 board, heat remains stagnant if not transferred by a topical heat-sink. Another material for making PCBs, though less commonly used, is an epoxy. A PCB made of epoxy is considered less durable. However, in cases where thermal quality is not very important, FR4 or epoxy bases are more common as these are less expensive.


Commonly used metals for PCBs are aluminum, copper and steel alloys. Apart from being cheaper than copper, aluminum is known for its good heat transferring and dissipation abilities. However, copper is considered to be a better performer. Both normal steel and stainless steel are more rigid and have less thermal conductivity than aluminum and copper. The choice of the core depends on the desired output and application. In general, aluminum is laminated with copper.



1.Base Material
FR-4 /  /Aluminum /CEM-1
3.Finised inner/outer copper thickness
4.Finished board thickness
5.Min hole size
Mechanical hole: 0.15mm Laser hole: 0.1mm
6.Controlled Impedance
7.Plugging vias capability
8.Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
9.Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...

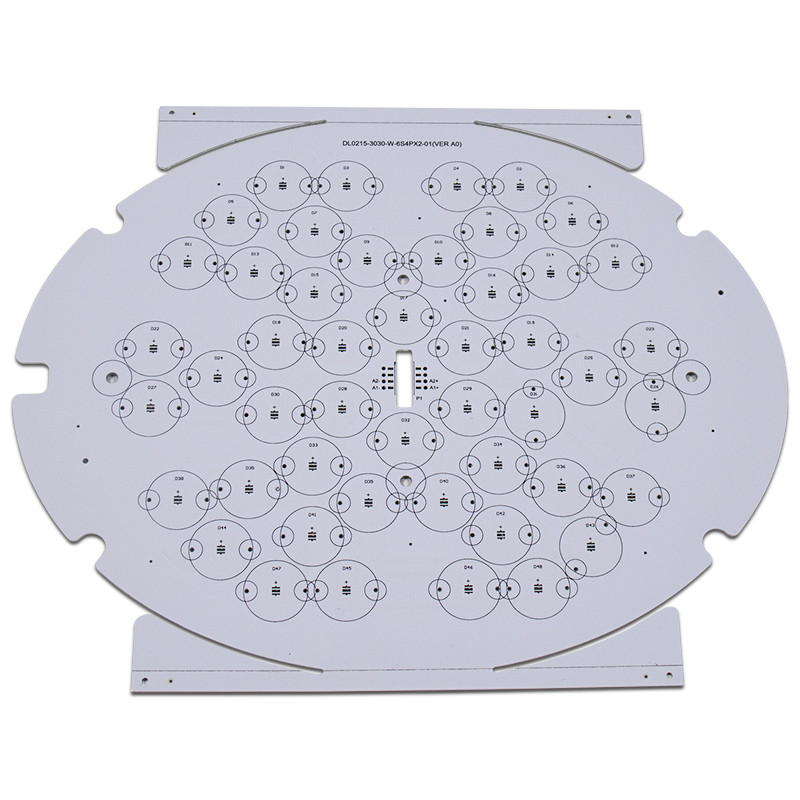

OEM 94V0 Aluminum Printed Circuit Board for LED Bulb 0

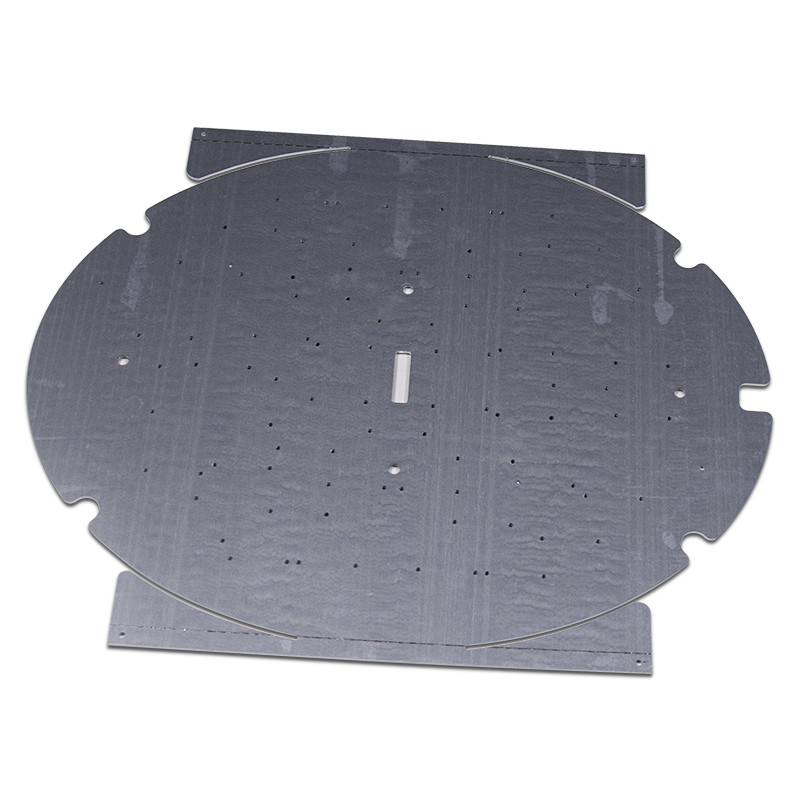

OEM 94V0 Aluminum Printed Circuit Board for LED Bulb 1



Q1.  How about your supply capacity?

A:  Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.


Q2.  Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q3.  How long is the lead time?

A:  For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 work days.
