OEM OSP 1.6mm Aluminum MCPCB Board For LED Lamp
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:





1.6mm Aluminum LED Lamp PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Solder Mask: Green. Red. Blue. White. Black.Yellow
Product Description

Led Bulb Pcb OEM OSP Aluminum Pcb 1.6mm Mcpcb Board Led Lamps


Benefits of Aluminum for LED PCBs:

Aluminum is one of the most popular LED circuit board materials because it has many properties that are ideal for LED applications.

Perhaps the most valuable feature of aluminum LED PCBs is their excellent heat transfer capabilities. Consistently high temperatures can damage electronics and LEDs and diminish their lifespan and performance, including the quality and color of the lights. Because of these risks, electronic devices


must have adequate heat transference — a term that refers to how well thermal energy, or heat energy, can move from place to place. Aluminum conducts thermal energy relatively easily, which enables it to transfer heat away from components such as LEDs.


Aluminum’s heat transference capabilities make it possible to mount more LEDs on each board. Because LEDs generate heat, having too many can cause too much heat to build up. Using an aluminum PCB, however, allows you to increase the number of LEDs without sacrificing performance. Also, the longer you use an electronic appliance, the hotter it gets. Improving heat transference enables you to operate your device for longer, even continuously, and increases the overall lifespan of the LEDs and the gadget.



1.Base Material
FR-4 /  /Aluminum /CEM-1
3.Finised inner/outer copper thickness
4.Finished board thickness
5.Min hole size
Mechanical hole: 0.15mm Laser hole: 0.1mm
6.Controlled Impedance
7.Plugging vias capability
8.Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
9.Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...

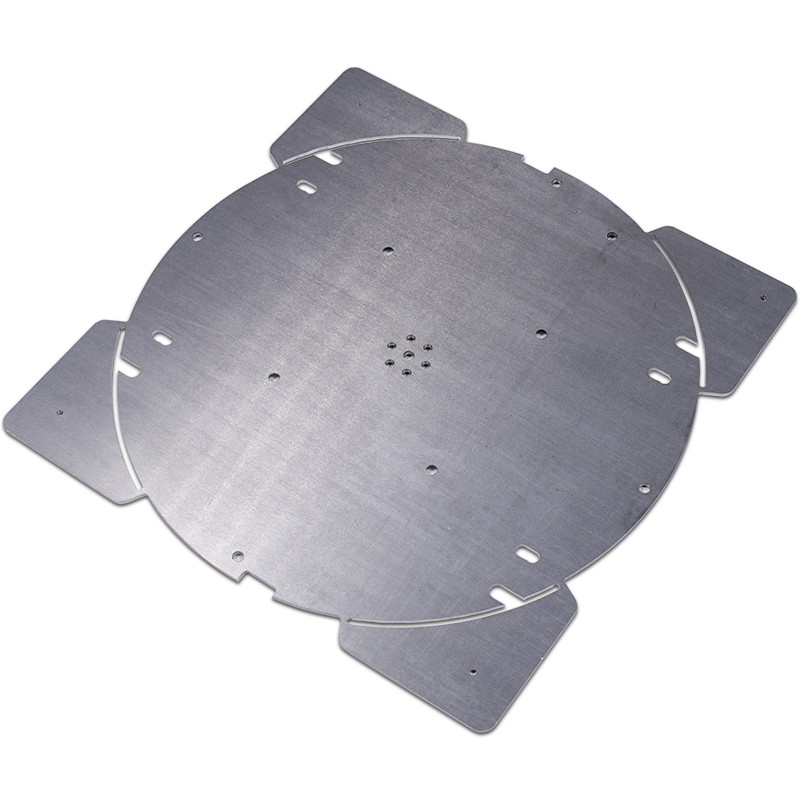

OEM OSP 1.6mm Aluminum MCPCB Board For LED Lamp 0

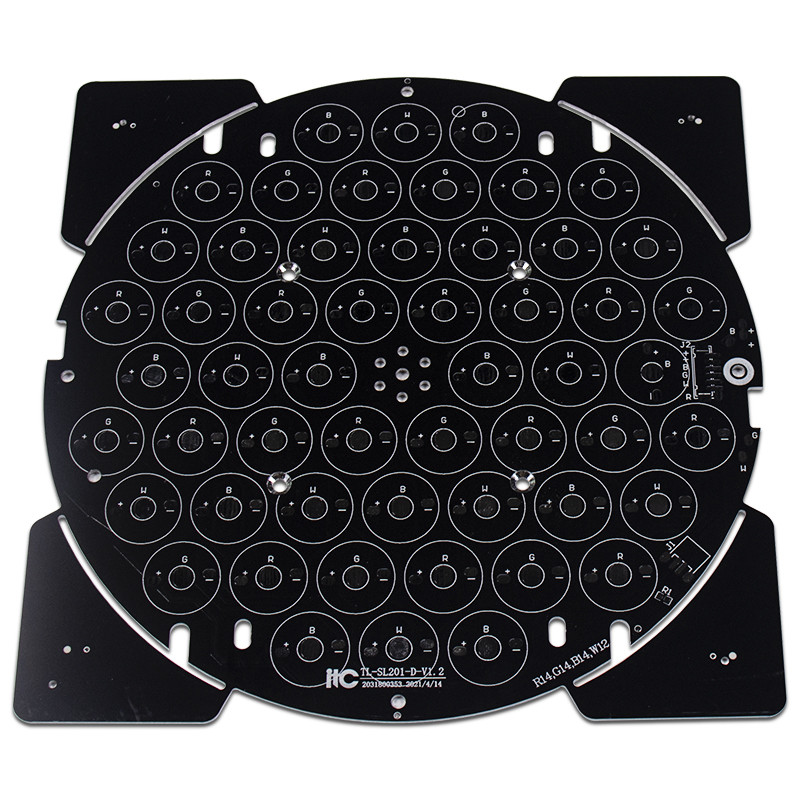

OEM OSP 1.6mm Aluminum MCPCB Board For LED Lamp 1



Q1.  What service do you have?

A:  We can offer one-stop service from PCB manufacturing to PCB assembling, testing,Soldering wire ,Coating and other value-added service.


Q2.  Is it OK to print my logo on product?

A:  Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q3.  How long is the lead time?

A:  For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 work days.
