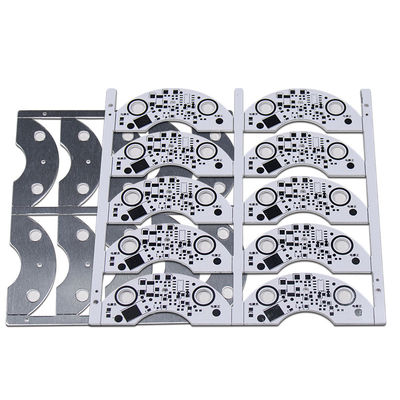

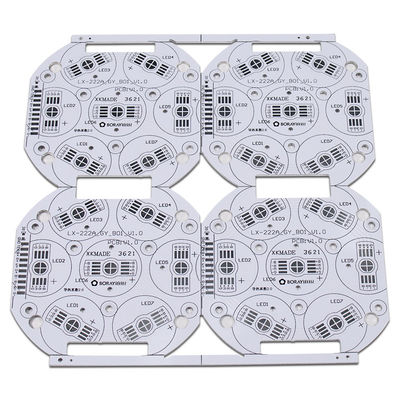

Single sided Led PCB Circuit Board Smd PcbA for LED Light
As PCB technology has continued to evolve, it has paved the way for the creation of a host of exciting product innovations. A prime example is the development of the PCB for LED lighting. The LED is soldered to the circuit board and features a chip that produces the light when electrically connected. A thermal heat sink and a ceramic base are used to bond the chip.
An LED PCB board tends to generate a high volume of heat, making it difficult to cool via traditional means. Consequently, metal core PCBs are frequently chosen for LED application due to their enhanced ability to dissipate heat. Aluminum in particular is often used to manufacture circuit boards for LED lights. The Single sided aluminum PCB typically includes a thin layer of thermally conductive dielectric material that can transfer and dissipate the heat with much greater efficiency than a traditional rigid PCB.
Product Parameter of Single sided Led PCB Circuit Board:
|
Item
|
Capability
|
|
1.Base Material
|
Single sided Led PCB Circuit Board
|
|
2.Layers
|
1-22
|
|
3.Finised inner/outer copper thickness
|
1-6OZ
|
|
4.Finished board thickness
|
0.2-7.0mm
|
|
5.Min hole size
|
Mechanical hole: 0.15mm Laser hole: 0.1mm
|
|
6.Controlled Impedance
|
+/-5%
|
|
7.Plugging vias capability
|
0.2-0.8mm
|
|
8.Outline profile
|
Rout/ V-cut/ Bridge/ Stamp hole
|
|
9.Surface treatment
|
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS...
|
Single sided Led PCB Circuit Board of Application:
Single sided Led PCB Circuit Board of Production Process:
FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q2. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3. How long is the lead time?
A: For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 work days.
