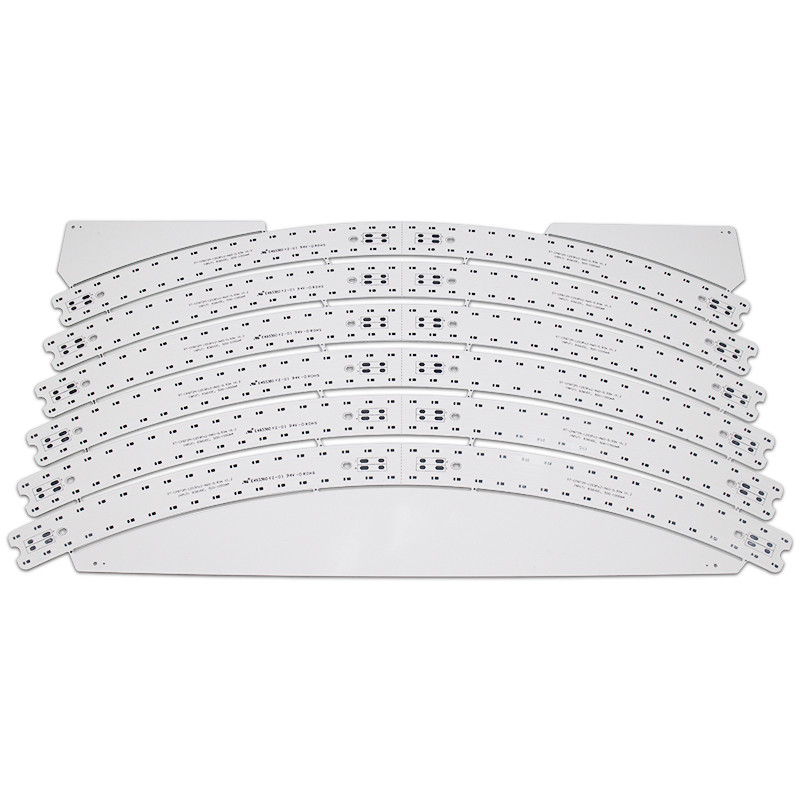

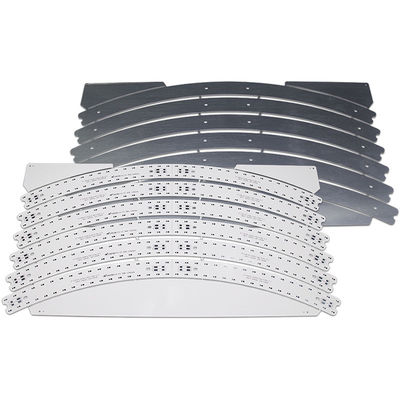

100W 120W 500W 1000W 3030 LED Grow Light Metal Core Printed Circuit Board

1. Introduction

As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.


2. Material: Aluminum-base PCB

Item Unit   Specification Test condition
Insulation thickness um





Solder resistance (288℃) Sec. Min 600 IPC-TM-650
Thermal shock 288℃10”/cycle Min 6 Times IPC-TM-650
Peel strength (Normal status) lb/in Min 9 IPC-TM-650 2.4.8
Breakdown Voltage V/mil   750 IPC-TM-650 2.5.6
Volume resistivity (Normal status>E+14) Ω · cm   1.8*1015 IPC-TM-650
Surface resistivity (Normal status>E+12) Ω 3.5*1014 IPC-TM-650

Dielectric constant

1 MHz Normal status

1 GHz Normal status





Dissipation constant

1 MHz Normal status

1 GHz Normal status





Water absorption %   0.2 IPC-TM-650

Thermal conductivity

(measured on insulation layer only)

W/m℃   1.0 ASTM-E1461
Flammability 94V-0   Pass IPC-TM-650 2.3.9
Tg   100 IPC-TM-650 2.4.24
Td   410 TBD (5wt% loss)
MOT (RTI)   130 UL746B
CTI (Comparative Tracking Index) V   >600 (PLC=0) UL746E DSR


3. Certification: UL, ROHS, Reach, ISO
4. Use range: Lighting, Automotive electronic equipment, Power supply, Electronic control, Computer equipment, Communication electronics etc.
5. What exhibitions have we participated in?
New Delhi Exhibition, Moscow Electronic Exhibition, etc.


6. Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation

7. Payment method:
T/T, Paypal, credit card, Western Union, etc.


100W 120W 500W 1000W 3030 LED Grow Light MCPCB Board 0



Aluminum PCB

The aluminum circuit board contains a thin layer of thermally conductive dielectric material, which has the effect of transferring heat.
An aluminum circuit board is also called aluminum base PCB, flexible aluminum PCB, metal clad printed circuit board (MCPCB), an insulated metal substrate (IMS or IMPCB), etc.

100W 120W 500W 1000W 3030 LED Grow Light MCPCB Board 1

Structure of Aluminum PCB

The aluminum circuit board is composed of a unique layered structure.

Circuit Layer

The printed circuitry is etched with a 1oz-10oz copper layer to assemble and link the components, which can carry a higher current compared to FR-4.

Insulation layer

The main role of the insulation layer is insulation and thermal conductivity, it plays a central role in Aluminum PCB, which helps to disperse heat and reduce the operating temperature of the device to achieve increased power output, reduced volume, and extended life.

Metal substrates

The metal substrate can be selected according to the requirements of the thermal and mechanical conductivity of the Aluminum PCB, aluminum is the ideal choice, but also copper, stainless steel, iron, silicon steel, etc.
