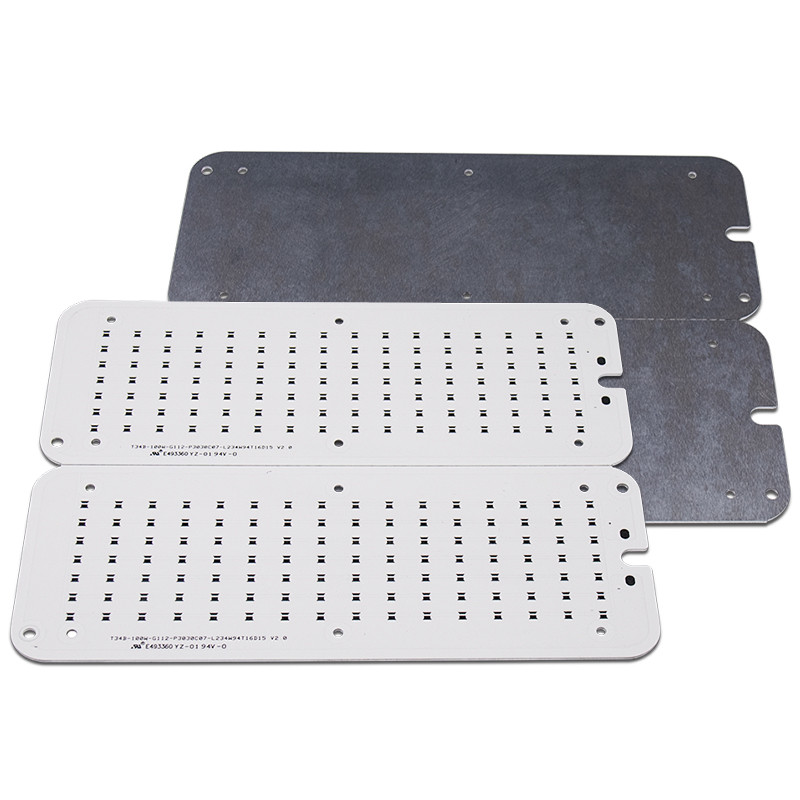

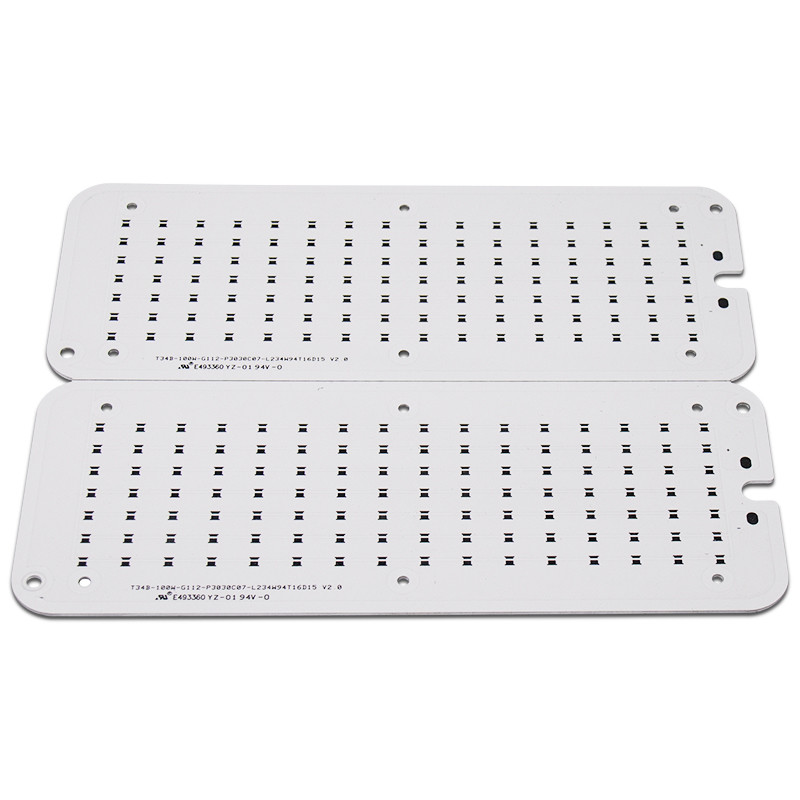

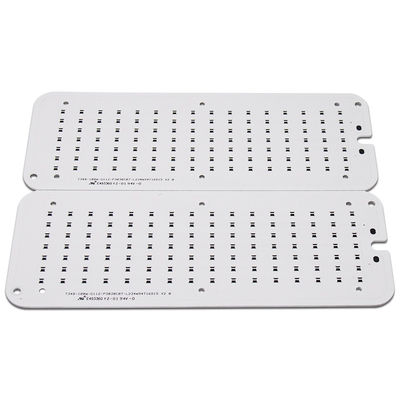

High Power LED Light Metal Surface Mount PCB Assembly
2PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:

LED Light Surface Mount PCB Assembly

,

Metal Surface Mount PCB Assembly

,

High Power LED Light PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Specifications
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Solder Mask: Green. Red. Blue. White. Black.Yellow
Product Description

diy led pcb Metal surface mount pcb assembly High Power Led Pcb Led Pcb Design



1. Introduction

As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.



2. Material: Aluminum-base PCB

Item Unit   Specification Test condition
Insulation thickness um

Max

Min

200

60

Solder resistance (288℃) Sec. Min 600 IPC-TM-650 2.4.13.1
Thermal shock 288℃10”/cycle Min 6 Times IPC-TM-650 2.4.13.1
Peel strength (Normal status) lb/in Min 9 IPC-TM-650 2.4.8
Breakdown Voltage V/mil   750 IPC-TM-650 2.5.6
Volume resistivity (Normal status>E+14) Ω · cm   1.8*1015 IPC-TM-650 2.5.17.1
Surface resistivity (Normal status>E+12) Ω 3.5*1014 IPC-TM-650 2.5.17.1

Dielectric constant

1 MHz Normal status

1 GHz Normal status



5.6

5.3

IPC-TM-650

2.5.5.3

2.5.5.5

2.5.5.6

Dissipation constant

1 MHz Normal status

1 GHz Normal status



0.013

0.010

IPC-TM-650

2.5.5.3

2.5.5.5

2.5.5.9

Water absorption %   0.2 IPC-TM-650 2.6.2.1

Thermal conductivity

(measured on insulation layer only)

W/m℃   1.0 ASTM-E1461
Flammability 94V-0   Pass IPC-TM-650 2.3.9
Tg   100 IPC-TM-650 2.4.24
Td   410 TBD (5wt% loss)
MOT (RTI)   130 UL746B
CTI (Comparative Tracking Index) V   >600 (PLC=0) UL746E DSR



3. Certification: UL, ROHS, Reach, ISO
4. Use range: Lighting, Automotive electronic equipment, Power supply, Electronic control, Computer equipment, Communication electronics etc.
5. What exhibitions have we participated in?
New Delhi Exhibition, Moscow Electronic Exhibition, etc.



6. Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation


7. Payment method:
T/T, Paypal, credit card, Western Union, etc.



High Power LED Light Metal Surface Mount PCB Assembly 0





Metal substrate

What kind of metal is used for the insulating metal substrate depends on the comprehensive consideration of the thermal expansion coefficient, thermal conductivity, strength, hardness, weight, surface state and cost of the metal substrate.

In general, considering the conditions such as cost and technical performance, aluminum plate is an ideal choice. Available aluminum plates are 6061, 5052, 1060 and so on. If there are higher requirements for thermal conductivity, mechanical properties, electrical properties and other special properties, copper plates, stainless steel plates, iron plates and silicon steel plates can also be used.

High Power LED Light Metal Surface Mount PCB Assembly 1

Application of Aluminum PCB

1. Audio device: Input, output amplifier, balanced amplifier, audio amplifier, pre-amplifier, power amplifier.

2. Power Supply: Switching regulator, DC / AC converter, SW regulator, etc.

3. Communication electronic equipment: High-frequency amplifier, filtering appliances, the transmitter circuit

4. Office automation equipment: Motor drive, etc.

5. Automobile: Electronic regulator, ignition, power supply controller, etc.

6. Computer: CPU board, floppy disk drive, power supply devices, etc.

7. Power Modules: Inverter, solid-state relays, rectifier bridges.

8. Lamps and lighting: As the advocated promotion of energy-saving lamps, a variety of colorful energy-saving LED lights are well received by the market, and aluminum PCB used in LED lights also begin large-scale applications.

High Power LED Light Metal Surface Mount PCB Assembly 2
