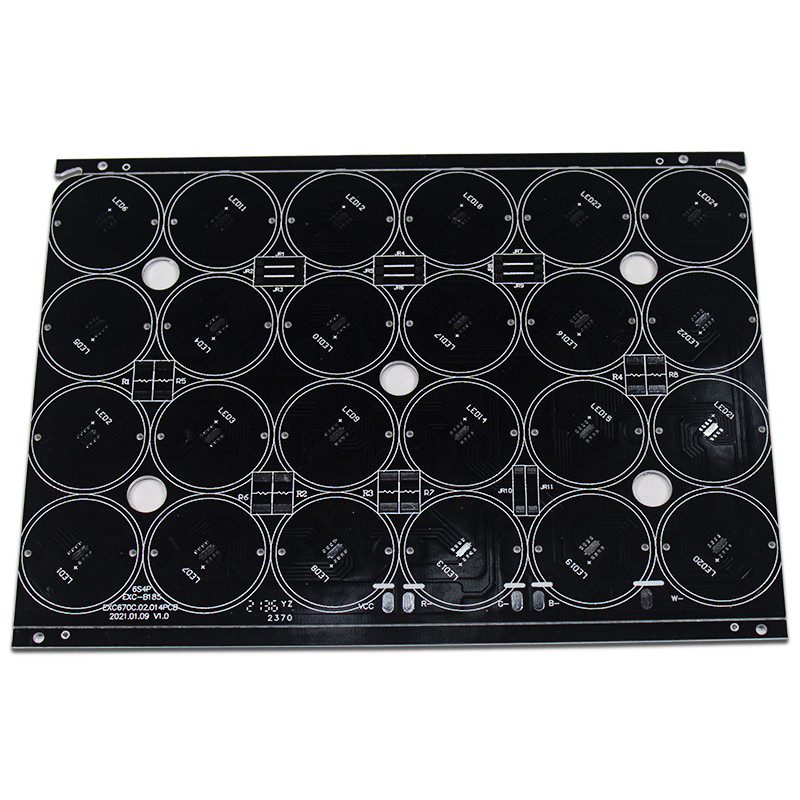

0.4 - 3.2mm Thickness Aluminum Clad PCB For SMD LED Light
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:

LED Light Aluminum Clad PCB


3.2mm Thickness Aluminum Clad PCB


Aluminum Clad SMD LED Light PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Solder Mask: Green. Red. Blue. White. Black.Yellow
Product Description

Aluminum Clad PCB Led Light Circuit Board Design Smd Led Board


1. Introduction

As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.


2. Material: Aluminum-base PCB

Item Unit   Specification Test condition
Insulation thickness um





Solder resistance (288℃) Sec. Min 600 IPC-TM-650
Thermal shock 288℃10”/cycle Min 6 Times IPC-TM-650
Peel strength (Normal status) lb/in Min 9 IPC-TM-650 2.4.8
Breakdown Voltage V/mil   750 IPC-TM-650 2.5.6
Volume resistivity (Normal status>E+14) Ω · cm   1.8*1015 IPC-TM-650
Surface resistivity (Normal status>E+12) Ω 3.5*1014 IPC-TM-650

Dielectric constant

1 MHz Normal status

1 GHz Normal status





Dissipation constant

1 MHz Normal status

1 GHz Normal status





Water absorption %   0.2 IPC-TM-650

Thermal conductivity

(measured on insulation layer only)

W/m℃   1.0 ASTM-E1461
Flammability 94V-0   Pass IPC-TM-650 2.3.9
Tg   100 IPC-TM-650 2.4.24
Td   410 TBD (5wt% loss)
MOT (RTI)   130 UL746B
CTI (Comparative Tracking Index) V   >600 (PLC=0) UL746E DSR


3. Certification: UL, ROHS, Reach, ISO
4. Use range: Lighting, Automotive electronic equipment, Power supply, Electronic control, Computer equipment, Communication electronics etc.
5. What exhibitions have we participated in?
New Delhi Exhibition, Moscow Electronic Exhibition, etc.


6. Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation

7. Payment method:
T/T, Paypal, credit card, Western Union, etc.


0.4 - 3.2mm Thickness Aluminum Clad PCB For SMD LED Light 0


Check PCBWay Aluminum core PCB manufacturing capabilities in the following table:

Feature Capability
Material Aluminum core (Domestic 1060), Copper core, FR4 covering
Thermal conductivity 1.0W/(m*k),2.0W/(m*k)
Min. Track/Spacing 4mil
Min. Hole Size 0.8mm
Base Material Aluminum, FR4, Flex, Flex-rigid, HDI, Rogers, etc.
Board Thickness 0.4-3.2mm
Surface Finishing Immersion gold, OSP, Hard Gold,Immersion SIlver,Enepig
Finsih Cooper 1-4oz
Solder Mask Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green
Silkscreen White, Black
Via Process Tenting Vias,Plugged Vias,Vias not covered
Testing Fly Probe Testing (Free) and A.O.I. testing
Build time 2-3 days
lead time 2-3 days

0.4 - 3.2mm Thickness Aluminum Clad PCB For SMD LED Light 1

by the way:

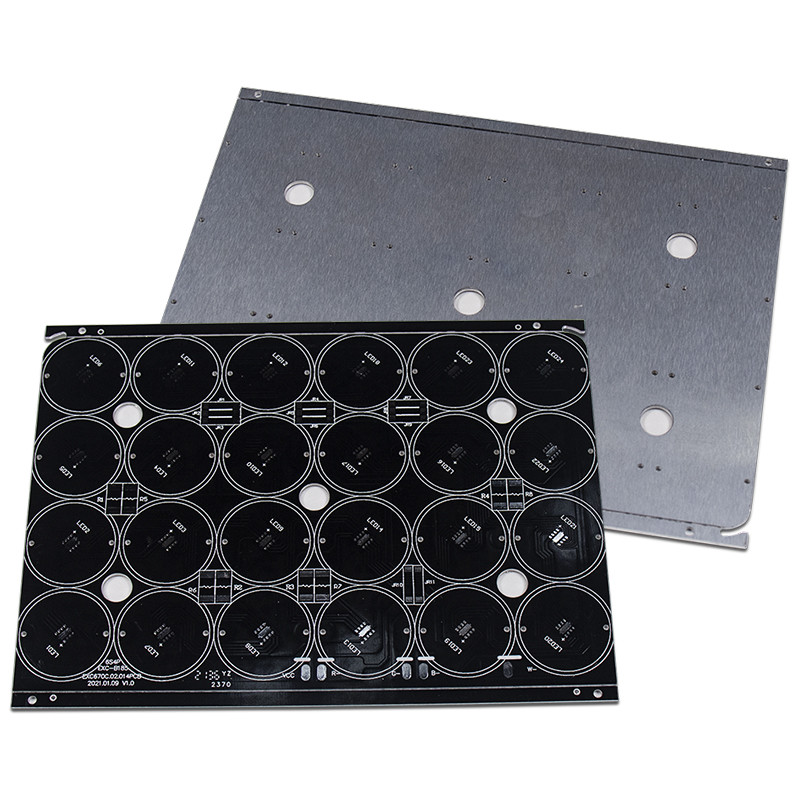

If we place an order for the wireless circuit of single-sided aluminum substrate, it is best to note whether or not to add thermal conductive glue, otherwise PCBWay will confirm with you whether thermal conductive glue is needed. The thermal conductive glue is milky white. The white part in the picture.

0.4 - 3.2mm Thickness Aluminum Clad PCB For SMD LED Light 2
