Aluminum RGB LED PCB Board With ENIG HASL Surface Finish
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:





HASL RGB LED Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Quality Grade: Standard IPC 2
Build Time: 2days - 5weeks
Min Tracing/Spacing: 4mil/4mil
Board Size: Min 6*6mm | Max 610*610mm
Product Description

Led Tube Light Pcb Rgb Led Pcb Board Led Tube Light Circuit Pcb Led Pcb Design

Get Your Free Quotation Now!

To get your quotation, upload your PCB design file so we can give you the best prices. If you have any enquiries bordering on other things such as Custom Project or our manufacturing capabilities, you can contact us and we'll get back to you as soon as possible!

Feature Capability
Quality Grade Standard IPC 2
Number of Layers 4 - 24layers
Order Quantity 1pc - 10000+pcs
Build Time 2days - 5weeks
Material Aluminum core (Domestic 1060), Copper core, FR4 covering
Board Size Min 6*6mm | Max 610*610mm
Board Thickness 0.8mm - 5.0mm
Copper Weight (Finished) 0.5oz - 10.0oz
Min Tracing/Spacing 4mil/4mil
Solder Mask Sides As per the file
Solder Mask Color Green, White, Blue, Black, Red, Yellow
Silkscreen Sides As per the file
Silkscreen Color White, Black, Yellow
Surface Finish HASL - Hot Air Solder Leveling
Lead Free HASL - RoHS
ENIG - Electroless Nickle/Immersion Gold - RoHS
Min Annular Ring 4mil
Min Drilling Hole Diameter 6mil
Other Techniques Countersink holes
Screw holes

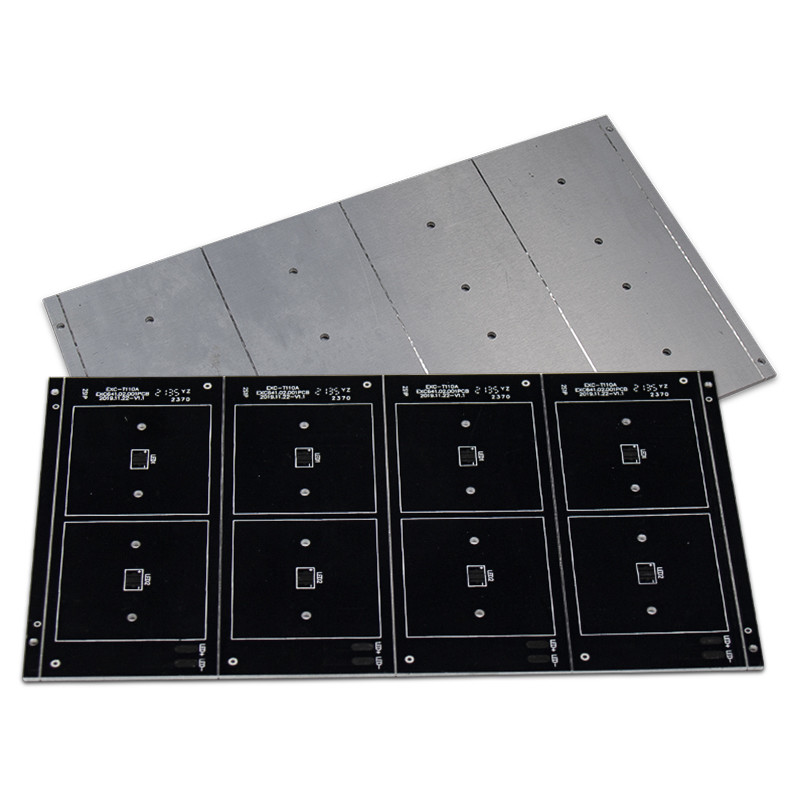

Aluminum RGB LED PCB Board With ENIG HASL Surface Finish 0

Why Choose YIZHUO

Top Manufacturer: YIZHUO has been manufacturing Metal Core PCBs for more than 10 years. Hence, we are experts in their production. With experienced experts who are the best in the industry, you can be assured of Metal Core PCBs that suit your requirements.

Quality Metal Core PCBs: Both our Aluminium MCPCB and Copper MCPCB have been widely used in the electronics industry in the manufacture of LED lightings and other applications. We are trusted and tested in the manufacture of quality products. We can guarantee you the very best.

Affordable Prices: Getting your Metal Core PCB from PCBdoing ensures that you save cost of production while also ensuring that the highest quality is maintained.

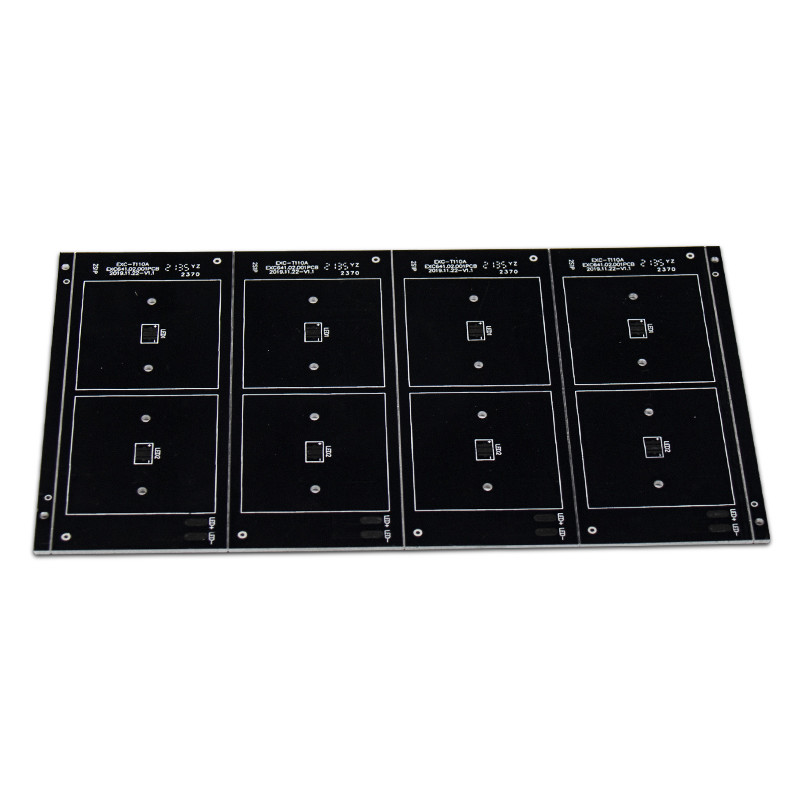

Aluminum RGB LED PCB Board With ENIG HASL Surface Finish 1

Application of Metal Core PCB

Metal Core PCBs have been widely used in various applications. Mostly used to increase efficiency in heat-generating applications, metal-based PCBs are used in

LED Applications such as Streetlight, Backlight Unit and general lighting applications

Power Converters

Electric Motor Control Applications

Audio Frequency apparatus

Communication equipment

Photo Voltaic Applications

Solar Panels and a host of other applications

Aluminum RGB LED PCB Board With ENIG HASL Surface Finish 2
