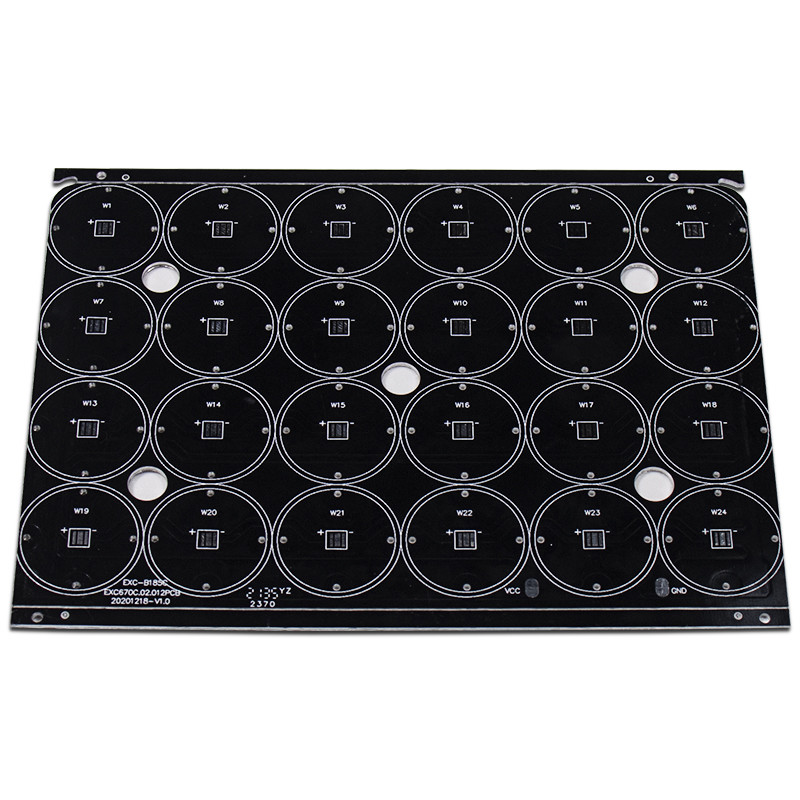

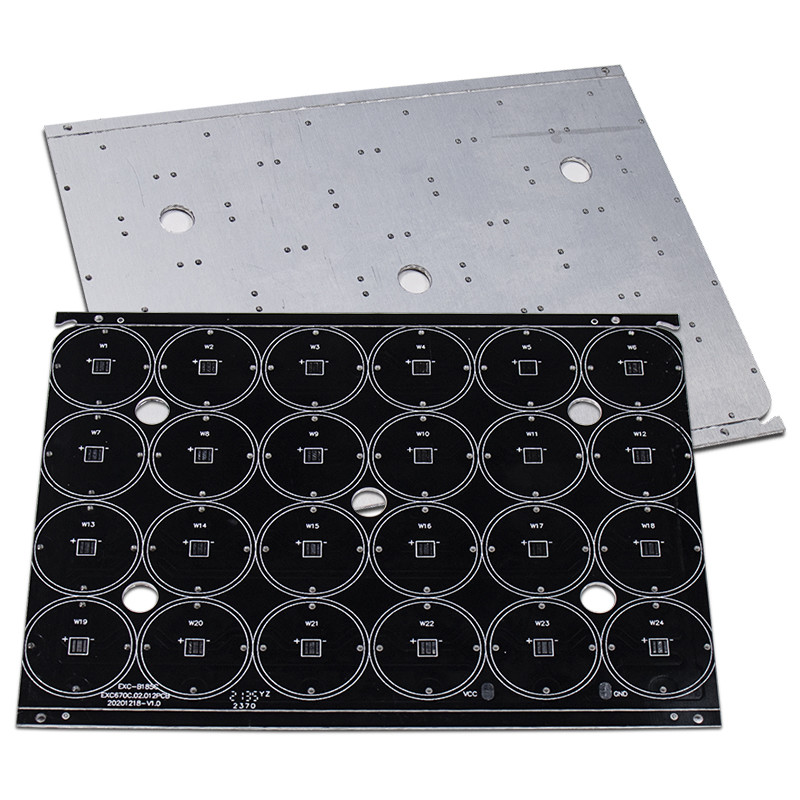

Standard IPC 2 Aluminum SMT RGB LED Tube Light PCB
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:

RGB LED Tube Light PCB


SMT LED Tube Light PCB


LED Tube Light SMT PCB Assembly

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Quality Grade: Standard IPC 2
Build Time: 2days - 5weeks
Min Tracing/Spacing: 4mil/4mil
Board Size: Min 6*6mm | Max 610*610mm
Product Description

Led Tube Light Circuit Pcb Led Tube Light Pcb Rgb Led Pcb Board Smt Pcb Assembly

Get Your Free Quotation Now!

To get your quotation, upload your PCB design file so we can give you the best prices. If you have any inquiries bordering on other things such as Custom Project or our manufacturing capabilities, you can contact us and we'll get back to you as soon as possible!

Feature Capability
Quality Grade Standard IPC 2
Number of Layers 4 - 24layers
Order Quantity 1pc - 10000+pcs
Build Time 2days - 5weeks
Material Aluminum core (Domestic 1060), Copper core, FR4 covering
Board Size Min 6*6mm | Max 610*610mm
Board Thickness 0.8mm - 5.0mm
Copper Weight (Finished) 0.5oz - 10.0oz
Min Tracing/Spacing 4mil/4mil
Solder Mask Sides As per the file
Solder Mask Color Green, White, Blue, Black, Red, Yellow
Silkscreen Sides As per the file
Silkscreen Color White, Black, Yellow
Surface Finish HASL - Hot Air Solder Leveling
Lead Free HASL - RoHS
ENIG - Electroless Nickle/Immersion Gold - RoHS
Min Annular Ring 4mil
Min Drilling Hole Diameter 6mil
Other Techniques Countersink holes
Screw holes

Standard IPC 2 Aluminum SMT RGB LED Tube Light PCB 0



Advanced PCB prototype making and any type of PCB can be customized here. Low-cost fast turn under IPC-2. Includes high multilayer PCB, build-up HDI, HF material, rigid-flex PCB, FPC, heavy copper, metal-core, gold finger, and so on.

1. Layers: 1-64 Layers 2. Quantity: 1pcs-1000pcs

3. Quality: IPC 2 4. Build time: 2-15 days

5. Material: FR4, Flex, Rogers, Arlon, Taconic, etc.

Standard IPC 2 Aluminum SMT RGB LED Tube Light PCB 1


Complex PCB fabrication solutions in HDI, high-frequency hybrid material, embedded components, multi-structure rigid-flex, stacked and staggered micro vias, fine line/space, back drilling, PTH&NPTH cavity, embedded copper coin, long-short, and staged gold finger.

1. Layers: 1-64 Layers 2. Quantity: 1pcs-1million

3. Quality: IPC 2 & IPC-3 4. Build time: 2-20 days

5. Material: FR4, Flex, Rogers, Arlon, Taconic, etc.

Standard IPC 2 Aluminum SMT RGB LED Tube Light PCB 2


Free DFM checking, custom testing, components sourcing. Meet one-stop fabrication and assembly. SMT, THT, Mixed Assembly, Package on Package (POP).

1. Turnkey or consigned 2. Quantity: 1-10,000+pcs.

3. Quality Grade: IPC3 4. Lead time: as short as 2 days

5. Other: AOI. X-ray SPI, ICT
