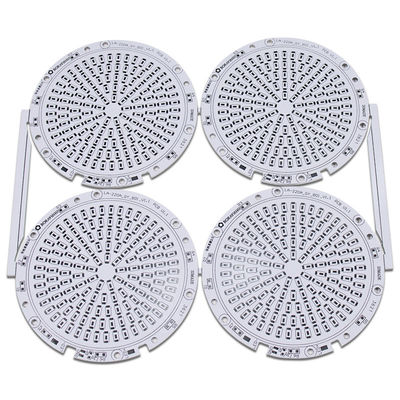

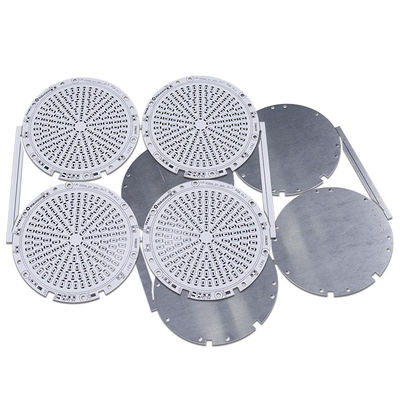

Metal Core Prototype PCB Board For LED Lighting Industry
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:

Metal Core Prototype PCB Board


LED Lighting Industry Prototype PCB Board


LED Lighting Metal Core PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Solder Mask: Green. Red. Blue. White. Black.Yellow
Product Description

Led Lighting Pcb Electronic Pcb Board Prototype Pcb Board Metal Core Pcb


Item Unit   Specification Test Condition
Insulation Thickness µm Max
Solder Resistance (288°C) Sec. Min 600 IPC-TM-650
Thermal Shock 288°C * 10"/cycle Min 6 Times IPC-TM-650
Peel Strength (Normal status) lb/in Min 9 IPC-TM-650 2.4.8
Breakdown Voltage V/mil   750 IPC-TM-650 2.5.6
Volume Resistivity (Normal status >E+14) Ω * cm   1.8x1015 IPC-TM-650
Surface Resistivity (Normal status >E+12) Ω   3.5x1014 IPC-TM-650
Dielectric Constant
1 MHz Normal Status
1 GHz Normal Status
Dissipation Factor
1 MHz Normal Status
1 GHz Normal Status
Water Absorption %   0.2 IPC-TM-650
Thermal Conductivity
(measured on insulation layer only)
W/m°C   1.0 ASTM-E1461
Flammability 94V-0   Pass IPC-TM-650 2.3.9
Tg °C   100 IPC-TM-650 2.2.24
Td °C   410 TBD (5wt% loss)
MOT (RTI) °C   130 UL 746B
CTI (Comparative Tracking index) V   600 (PLC=0) UL 746E DSR

Metal Core Prototype PCB Board For LED Lighting Industry 0

Technical Parameters
Layer count: 2
Board thickness:1.6mm
Raw material:Aluminum base, thermal conductivity 1.0w
Copper thickness on the board surface:≥45um
Copper thickness in the hole barrel:25um
Min.line width/space:0.22mm
Minimum hole diameter:0.4mm
Surface finishing:OSP/HASL

Metal Core Prototype PCB Board For LED Lighting Industry 1
Application: LED lighting

Structure of Aluminum PCBs:

Aluminum PCBs are aluminum based CCLs (CCL is a type of base material of PCBs). AluminumPCBs are actually quite similar to FR4 PCBs. The basic structure of Aluminum PCBs is four layered. It consists of a layer of copper foil, a dielectric layer, an aluminum base layer and aluminum base membrane.

Metal Core Prototype PCB Board For LED Lighting Industry 2
  • Copper Foil Layer: the copper layer used is relatively thicker than normal CCLs ( 1oz-10oz). A thicker layer of copper means a larger current carrying capacity.
  • Dielectric Layer:the Dielectric layer is a thermally conductive layer and is around 50μm to 200μm thick. It had a low thermal resistance and it suitable for its application.
  • Aluminum Base: The third layer isthe aluminum base which is made up of aluminum substrate. It has a high thermal conductivity.
  • Aluminum Base Membrane Layer: Aluminum base membrane is selective. It has a protective role by keeping the aluminum surface safe from scraping and unwanted etching. It is of two types i.e. Lower than 120 degree or around 250 degrees (anti high temperature)
