HASL ENIG OSP Immersion Silver Aluminum Substrate PCB For LED Tube Light
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: LED PCB Board 12
High Light:

LED Tube Light Aluminum Substrate PCB


HASL Aluminum Substrate PCB


LED Tube Light Aluminium Substrate PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Material: Aluminum Material
Profiling Punching: Routing, V-CUT, Beveling
Surface Finishing: HASL/ENIG/OSP/Immersion Silver
Min. Line Width: 0.3-0.35um
Application: Medical Equipments,automotive Electronics,industry
Solder Mask: Green. Red. Blue. White. Black.Yellow
Product Description

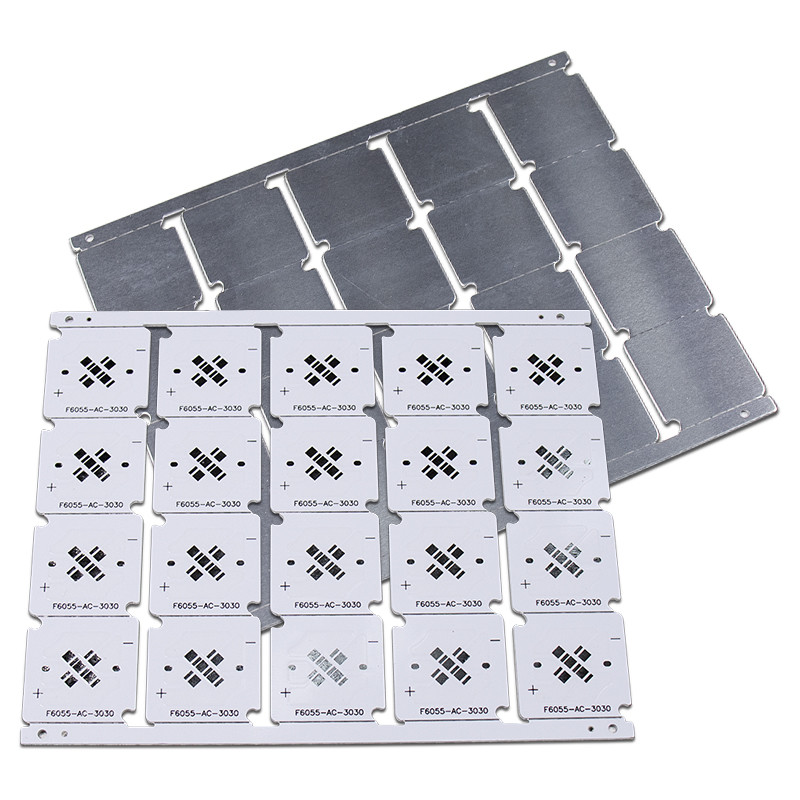

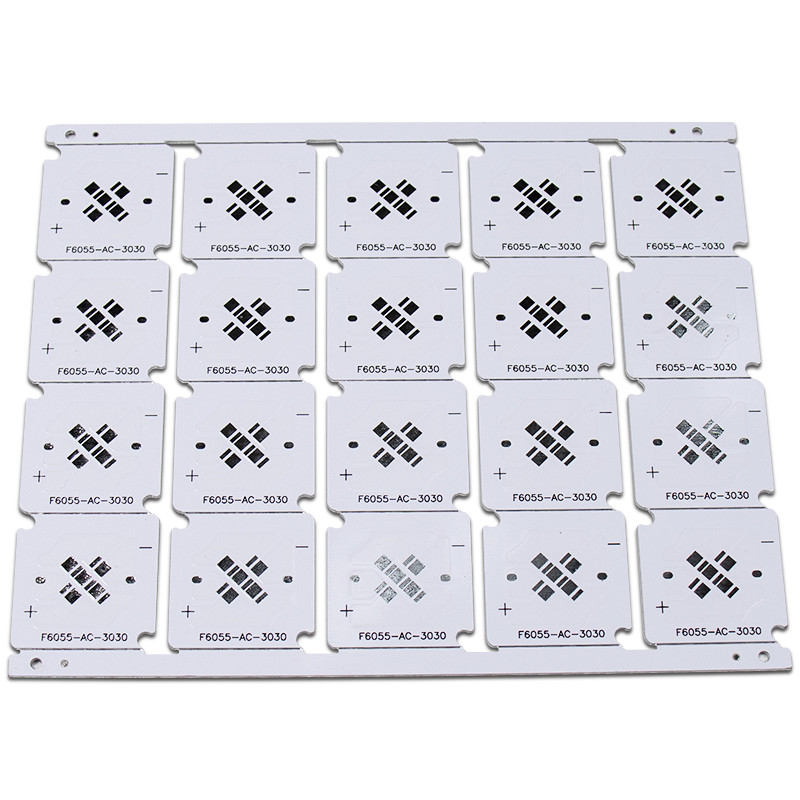

Led Tube Light Circuit Board Round Led Circuit Board Aluminum Substrate Pcb


Item Unit   Specification Test Condition
Insulation Thickness µm Max
Solder Resistance (288°C) Sec. Min 600 IPC-TM-650
Thermal Shock 288°C * 10"/cycle Min 6 Times IPC-TM-650
Peel Strength (Normal status) lb/in Min 9 IPC-TM-650 2.4.8
Breakdown Voltage V/mil   750 IPC-TM-650 2.5.6
Volume Resistivity (Normal status >E+14) Ω * cm   1.8x1015 IPC-TM-650
Surface Resistivity (Normal status >E+12) Ω   3.5x1014 IPC-TM-650
Dielectric Constant
1 MHz Normal Status
1 GHz Normal Status
Dissipation Factor
1 MHz Normal Status
1 GHz Normal Status
Water Absorption %   0.2 IPC-TM-650
Thermal Conductivity
(measured on insulation layer only)
W/m°C   1.0 ASTM-E1461
Flammability 94V-0   Pass IPC-TM-650 2.3.9
Tg °C   100 IPC-TM-650 2.2.24
Td °C   410 TBD (5wt% loss)
MOT (RTI) °C   130 UL 746B
CTI (Comparative Tracking index) V   600 (PLC=0) UL 746E DSR

HASL ENIG OSP Immersion Silver Aluminum Substrate PCB For LED Tube Light 0

Highflypcb has been manufacturing aluminum PCBs for 10+ years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allow you to get high-quality aluminum PCBs done within budget. Our printed Aluminum PCBs are widely used for LED lighting, power equipment and automotive systems.


Highflypcb Provides Effective, Affordable PCB LED Lighting Solutions

As a full feature PCB solutions provider with more than a decade of experience, we're capable to provide LED PCB fabrication, components procurement and assembly all under one roof. We can work with you to develop metal core/aluminum circuit boards customized to your specific applications. We feature competitively priced PCBs made with standard FR-4 material that includes a thermal aluminum clad layer that will efficiently dissipate heat, keep all LED PCB components cool and significantly enhance the performance of your products.
