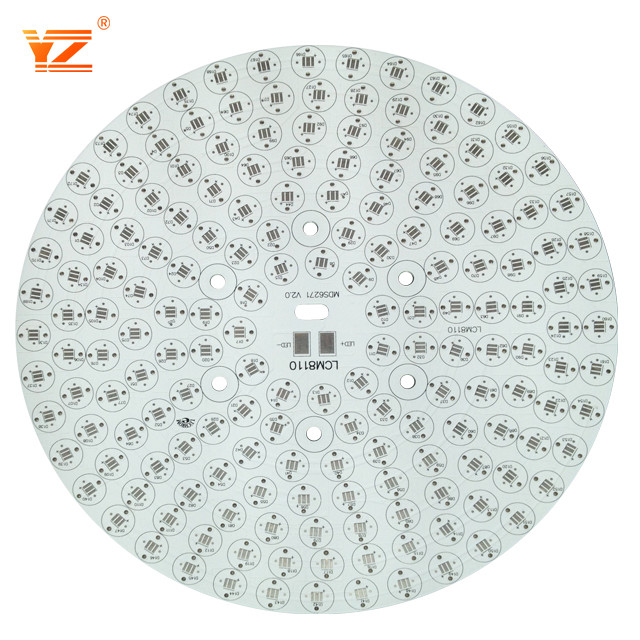

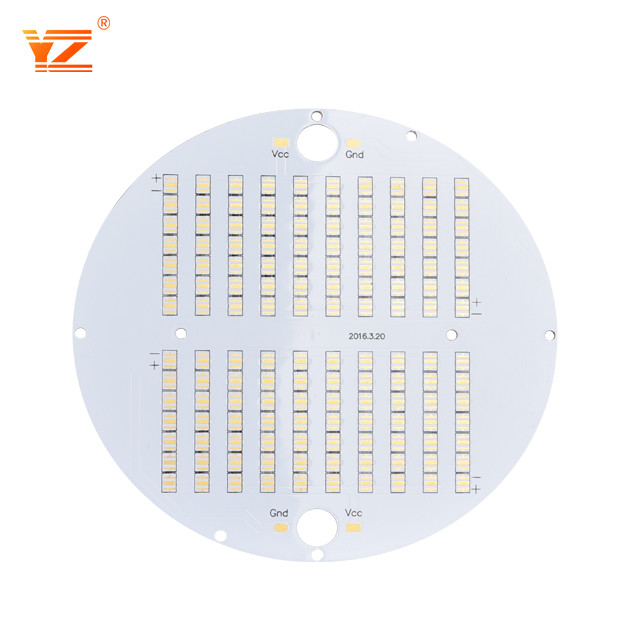

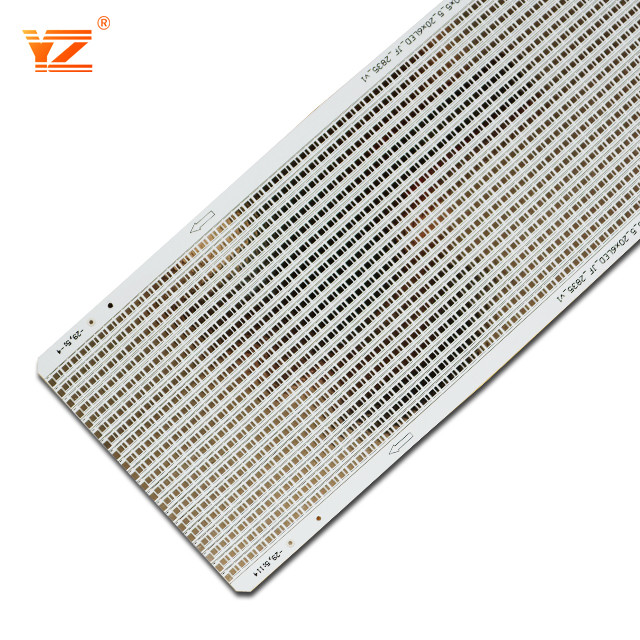

Aluminium COB MCPCB Boards Supplier In China
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: mc pcb01
Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Base Material: Aluminum
Min. Hole Size: 0.1mm
Layers: 1-2layers
Certificate: ISO9001:2008,ROHS,UL
Copper Thickness: 0.5oz-12oz
Surface Finishing: HASL Lead Free
Service: OEM Services
Product Description

led light mc pcb square pcb board led 94v0 Rohs led pcb board





PCB Capacity
Base Material FR-4, 22F, CEM-3, CEM-1, aluminum, HB, 94V0
Layers 1-22 layers
Max Panel 1550mm*800mm
Copper Thickness 0.5oz, 1oz, 2oz, 3oz,4oz
Dielectric Thickness 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
Board Core Thickness 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,1.5mm, 2.0mm, 3.0mm and 3.2mm
Board Thickness 0.4mm - 4.0mm
Thickness Tolerance +/-10%
Aluminum Machining Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available
Min Hole 0.2 mm
Max Working Voltage 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)
Min Track Width 0.2mm (8mil)
Min Track Gap 0.2mm (8mil)
Min SMD Pad Pitch 0.2mm (8mil)
Surface Finishing HASL lead free, Immersion Gold, Immersion Silver
Solder Mask Color Green, Blue etc
Legend Color Black, White etc
E-test Yes
Certificate UL / CUL / ROHS / ISO9001







Aluminium COB MCPCB Boards Supplier In China 0

FAQ:



Q:.How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.



Q2.What is your advandage than other supplier ?
A: We have around 12 years of experience in produce PCB,with professional engineer team and advanced auto production line.
