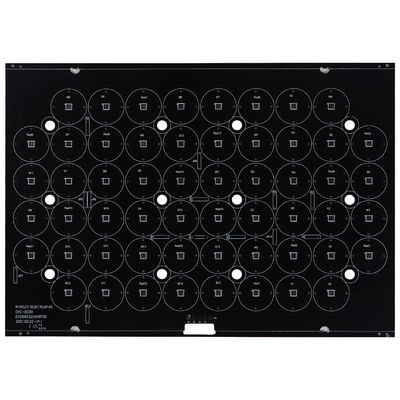

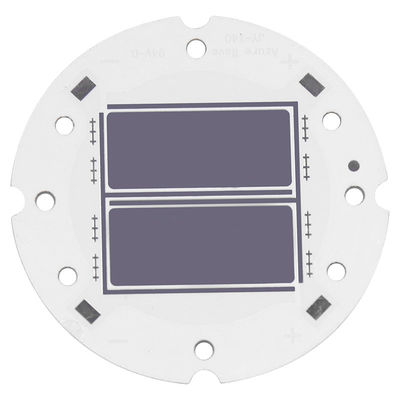

Single Sided LED MCPCB SMD 94V0 LED Module Min Size 6*6mm
1PCS
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: mcpcb 07
High Light:

Single Sided LED MCPCB

,

6*6mm LED MCPCB

,

94V0 LED Module

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Specifications
Layer: 1-2 Layers
Testing: Fixturer Testing Jig/flying Testing
Certificate: ISO9001:2008,ROHS,UL
Board Size: Can Be Customized
Silkscreen: White, Yellow, Black
Testing Service: Fly-probe,100% AOI Testing, 100% ET Testing,
Product Description

 Single Sided LED MCPCB SMD 94V0 LED Module Min Size 6*6mm



Single-sided pcb smd led pcb circuit board led module 94v-0 Led PCB

Aluminum PCB manufacturing is the increasing trend in the modern Printed Circuit board industry. Their high thermal conductivity and better performance make them the first choice for electronics that require high heat dissipation.

Your choice of Printed Circuit Board would greatly impact the future of your electronics. Therefore, you need to make the right decision, the first time. Once incorporating the Printed Circuit Board, make changes would cost you greatly.

There are several types of Printed Circuit Boards out there, each type catering a certain category of electronics. We are not going to talk about a different type of PCB, on the contrary, our focus would be on a particular type of PCB- Aluminum PCB.

Aluminum PCB manufacturers generate aluminum alloy after several heat treatments and pre-drawing processes. These steps are imperative to ensure the quality of Aluminum alloy.

However, manufacturers do enjoy the processing performance, electroplating characteristics, welding power, and corrosion-resistant of its silicon and magnesium alloy. Furthermore, it offers toughness, compact material, no deformation and defect-free material.

Polishing and coloring are also easy and efficient. The amazing oxidation effect further adds to its appeal.

PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing


Single Sided LED MCPCB SMD 94V0 LED Module Min Size 6*6mm 0
FAQ:
Q1. Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.

Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.

Q3:  How about the Shipping cost?
A:  The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
