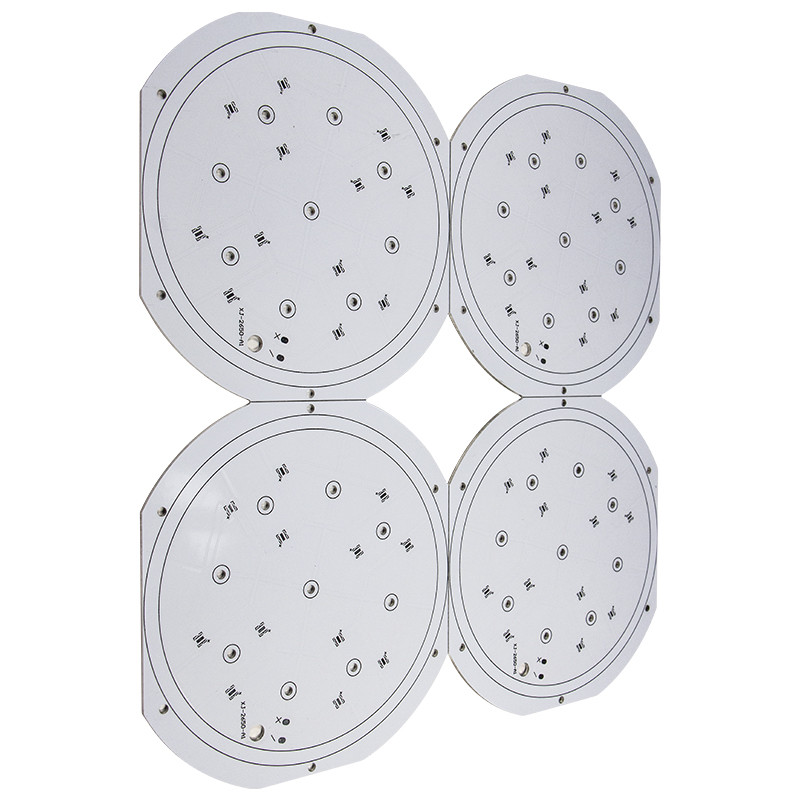

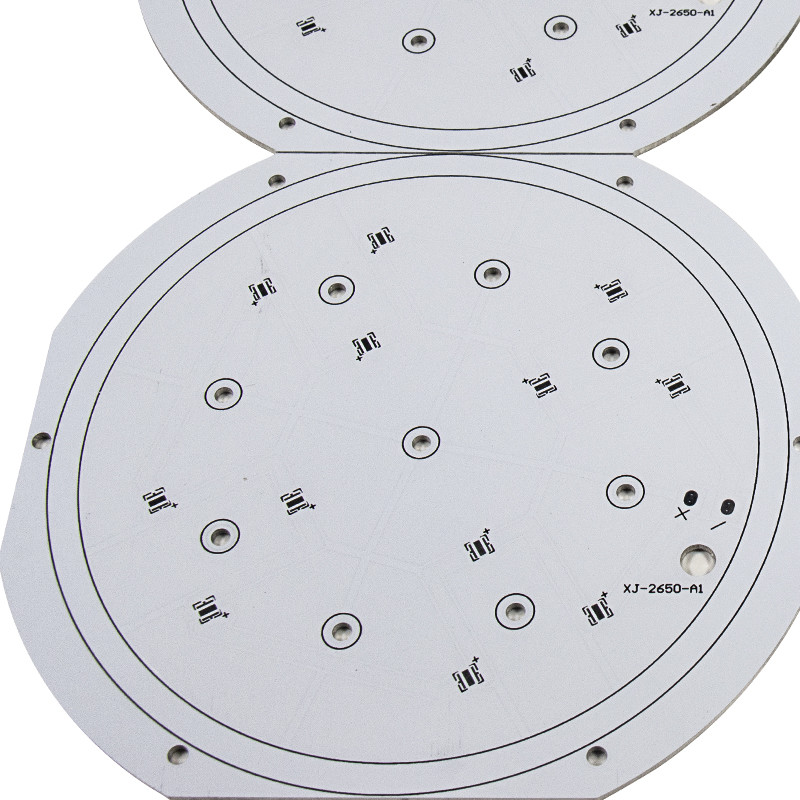

CustomThick 1.0mm 1.6mm LED MCPCB LED Light Aluminum Circuit Board
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: mcpcb 03
High Light:





4.0mm Aluminum Circuit Board

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Base Material:: Aluminum Based
Finished Board Thickness: 0.4mm To 4.0mm
Service Type: OEM/ODM
Min. Hole Size: 0.25mm(10mils)
Surface Finishing: HASL,OSP,ENIG, Gold Finger
V-CUT Angle: 20, 25, 30, 45 Degree
Product Description

CustomThick 1.0mm 1.6mm LED MCPCB LED Light Aluminum Circuit Board


Aluminum Circuit Board customize mcpcb for Industrial LED light


MC PCB means metal core printed circuit boards. why use metal,not FR4/CEM-1 or others? All is to get high thermal conductivity. The most MC PCB is  Aluminum PCB, Aluminum has good heat transfer and dissipation ability, but also cheaper than copper based PCB.Many customers asked a quote for MC PCB but without the thermal requirements.If you know the thermal conductivity is the most most important thing for MC PCB,then

you will know why the price is so difference. Normal thermal is from 0.8-2.00 W/m.k,and higher can up to 8.0 W/m.k,even more if you need ,but are you sure? When we quote to you ,we have to ask you the thermal conductivity,it is not only about cost but your product.Many factories used low thermal ,can you use the boards?


MC PCB uses in LED lights,Industrial power equipment,Cars,Power,etc. Bergquist is the top quality metal core material but top cost as well.

Thermal Conductive Board (TCB), or Insulated Metal Substrate (IMS), provides the advantages of high thermal conductivity, reliability and solder heat endurance. The TCB substrate is a sandwich structure, which includes layers of conductor, insulator and metal base.Traditionally, this insulator is made of epoxy, epoxy filled glass fiber, polyimide, or other dielectric materials. However, these kinds of insulators could not meet the requirement in high-power electronic devices. The heat generated by these devices will accumulate, and
the life time and reliability of the end product will decrease.


Product Type Al Clad PCB 1 layer~2 layer
Maximum Panel size 20"*24" (1170mm*600mm)
Copper thickness 0.5oz, 1oz, 2oz, 3oz and 4 oz
Dielectric Thickness
(to Substrate)
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
Substrate Core Thickness 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm
Finished Board Thickness 0.4mm To 4.0mm
Thickness Tolerance +/-10%
Aluminum Machining Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available
Min. Finish hole size 0.25mm
Max.working voltage 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric)
Min.Track Width 0.2mm (8mils)
Min.Track gap 0.2mm (8mils)
Min. SMD pad pitch 0.2mm (8mils)
Surface Finishing HASL, HASL Leadfree, Immersion gold, Flash gold, OSP
Soldermask color White, Black, others Available
Legend color Black, White, others Available
Etest YES
Rohs YES
Reference Standard IPC-A-600G Class 2
Special holes Spot facing, Cup holes
Data Input Gerbers, AutoCad, Cam350, PROTEL 99SE,PROTEL DXP,

CustomThick 1.0mm 1.6mm LED MCPCB LED Light Aluminum Circuit Board 0
Q: How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.
Q: What about the transportation and delivery date?
A:  Normally,we use international express(such as,Fedex,DHL,TNT) to deliver samples and small volume orders. For large mass order, we can arrange shipping by sea.
