Aluminum Base PCB Min Line Width 0.15mm SMD 3535 LED PCB
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: CE,ROHS,UL
Model Number: MC PCB Board 06
High Light:

SMD 3535 Aluminum Base PCB




Line Width 0.15mm Aluminium Base PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package+ Good quality carton box
Delivery Time: 10-12 work days
Payment Terms: T/T, Western Union
Copper Thickness: 0.5oz-8oz, 1-6OZ
Min. Line Spacing: 0.15mm
Min. Line Width: 0.15mm
PCB Standard: IPC-A-610 D/IPC-III Standard
Solder Mask: Green, Yellow, Black, White, Red, Blue
Profiling: Punching, Routing, V-cut, Golden Finger, Beveling
Product Description

Aluminum Base LED MCPCB Min Line Width 0.15mm 3535 LED PCB


Aluminum base mcpcb 3535 led pcb printed circuit board led lamp board


An aluminum PCB has a similar layout to any other PCB. It has a layer or layers of copper, solder mask and silkscreen layered over it. Instead of having a fiberglass or plastic substrate, though, an aluminum circuit board has a metal substrate. This base mainly contains a combination of aluminum. The metal core can consist entirely of metal or have a combination of fiberglass and aluminum. Aluminum PCBs typically are single sided, but can be double sided as well. Mulilayer Aluminum PCBs are highly difficult to manufacture.


Aluminum boards get the most use in LED and power converting electronics. The intense light produced by LEDs creates high levels of heat, which aluminum directs away from components. An aluminum PCB extends the lifespan of an LED device and provides more stability. You can find aluminum substrates in street lights, stop lights and household lighting. They allow power converters to change currents and regulate electronics. Creators in many other industries also find use in aluminum circuit boards, but they don't implement them as often.


Aluminum can actually transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board. Higher durability: Aluminum provides strength and durability to a product that ceramic or fiberglass bases cannot.

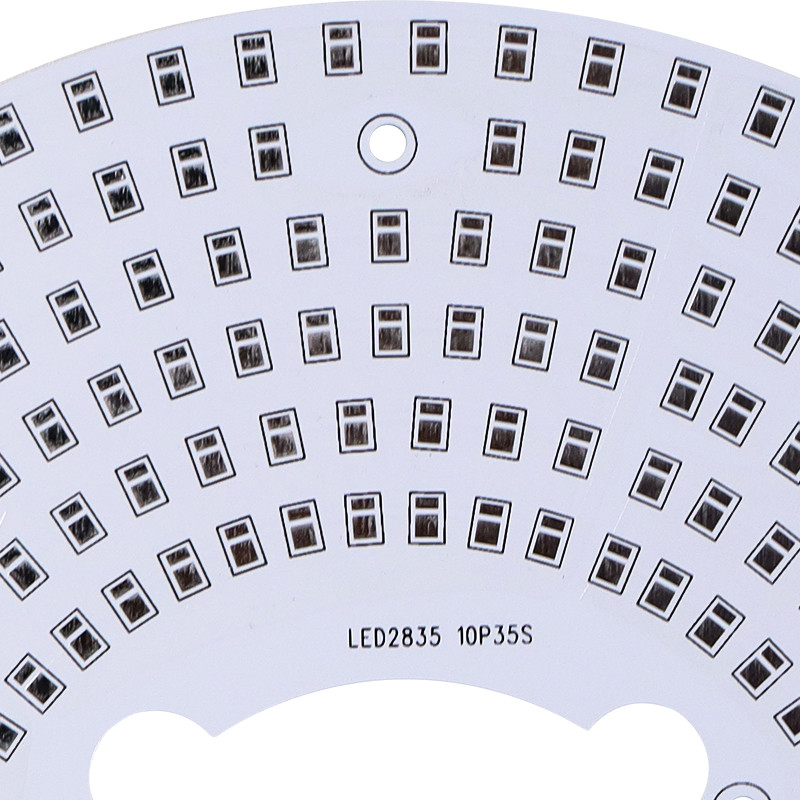

Aluminum Base PCB Min Line Width 0.15mm SMD 3535 LED PCB 0

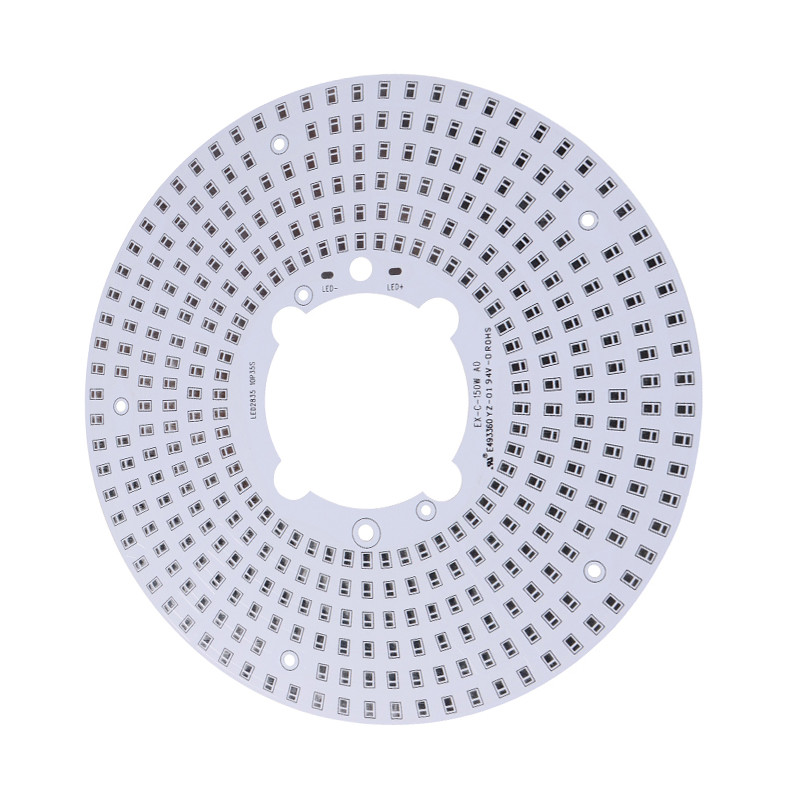

Aluminum Base PCB Min Line Width 0.15mm SMD 3535 LED PCB 1



Q1: How about your supply capacity?

A: For PCB board, you need to prepare files of Gerber file,it should including RS274X,ODB++, DXF, PCB, PCBDOC etc formats.For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample picture or 3D PDF version file etc.


Q2: Are all your products certified with UL, ROHS etc?

A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
