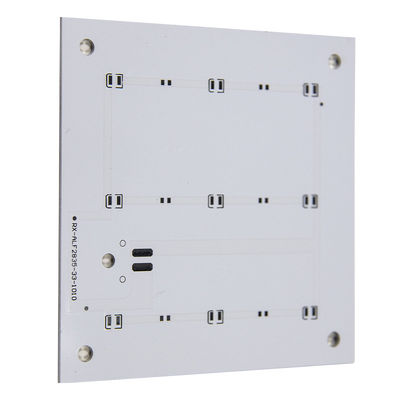

Single Sided DOB LED PCB Circuit Board For 9W 18W LED Bulbs Light
Led single-side DOB aluminium pcb circuit board 9W 18W Led bulbs light

Aluminum PCB consists of three layers, which are the copper layer, dielectric layer, and aluminum base layer. There can be a fourth layer, which is known as the aluminum base membrane layer. The membrane layer protects the aluminum from scraping, scratches, and unwanted etching.

  •  Copper Layer: At the top of the aluminum PCB, there is a copper layer, which creates the circuit. The layer is common in all types of PCBs, including FR-4. It offers the electrical connection and conductivity of current among the components.

  •  Dielectric Layer: Aluminum can also conduct electricity; therefore, a dielectric material is used between the copper layer and the aluminum layer. This layer can be of different materials depending on the temperature range. Although this layer is electrically insulated, it can conduct heat efficiently. It has excellent thermal conductivity to hold the heat from the components to the aluminum layer.

  •  Aluminum Base Layer: This is the most crucial layer of the PCB. It provides thermal conductivity, durability, and strength to the PCB. The layer is made of aluminum substrate. The substrate can be of different types, such as Aluminum 505, Aluminum 6061, etc. You can choose the perfect aluminum substrate according to your requirements.

  •  Aluminum Base Membrane Layer: The aluminum base film is selective. It has a protective effect by protecting the aluminum surface from scratches and unnecessary corrosion. It has two types, namely less than 120 degrees or about 250 degrees (high-temperature resistance)

Product Type:

Printed Circuit Board Assembly





Solder Mask:

green, yellow,white, blue,black

Finished Surface:

Lead-free HASL,Immersion Gold,ImmersionSilver

Silkscreen color


Min Solder Mask Bridge:


Minimum line width/gap:

3.5/4mil(laser drill)

Minimum hole size:

0.15mm(mechanical drill)/4mil(laser drill)

Thicker Copper:


Plated holes Tolerance:
