Black Multilayer Printed Circuit Board 94v0 PCB Custom LED Moude
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: mcpcb 06
High Light:

94v0 Multilayer Printed Circuit Board


HASL Multilayer Printed Circuit Board


Multilayer 94v0 PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Layer: 1-2 Layers
Testing: Fixturer Testing Jig/flying Testing
Certificate: ISO9001:2008,ROHS,UL
Board Size: Can Be Customized
Silkscreen: White, Yellow, Black
Surface Finishing: HASL,OSP,ENIG, Gold Finger
Product Description

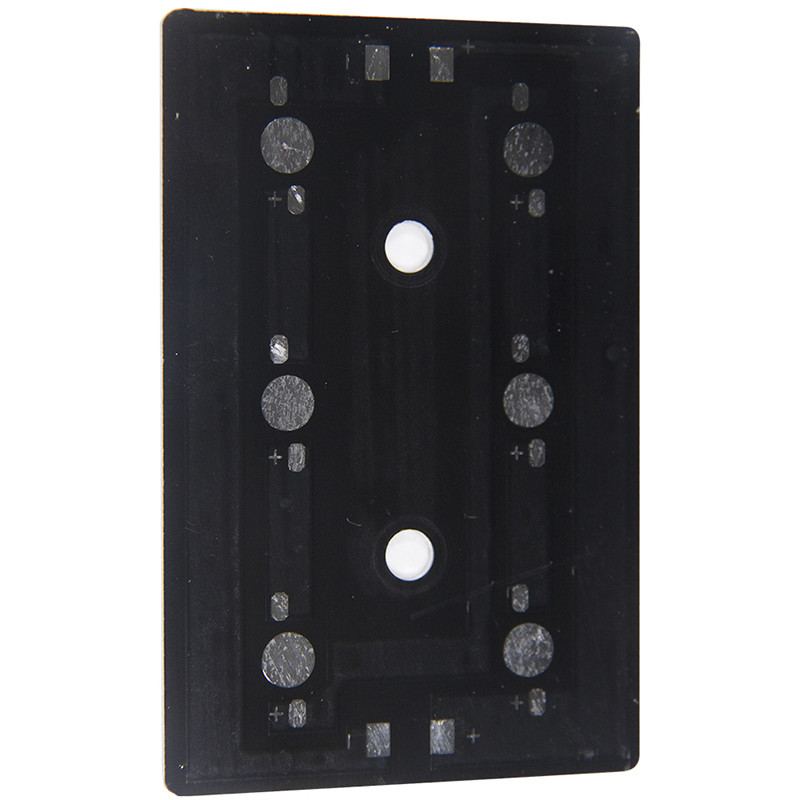

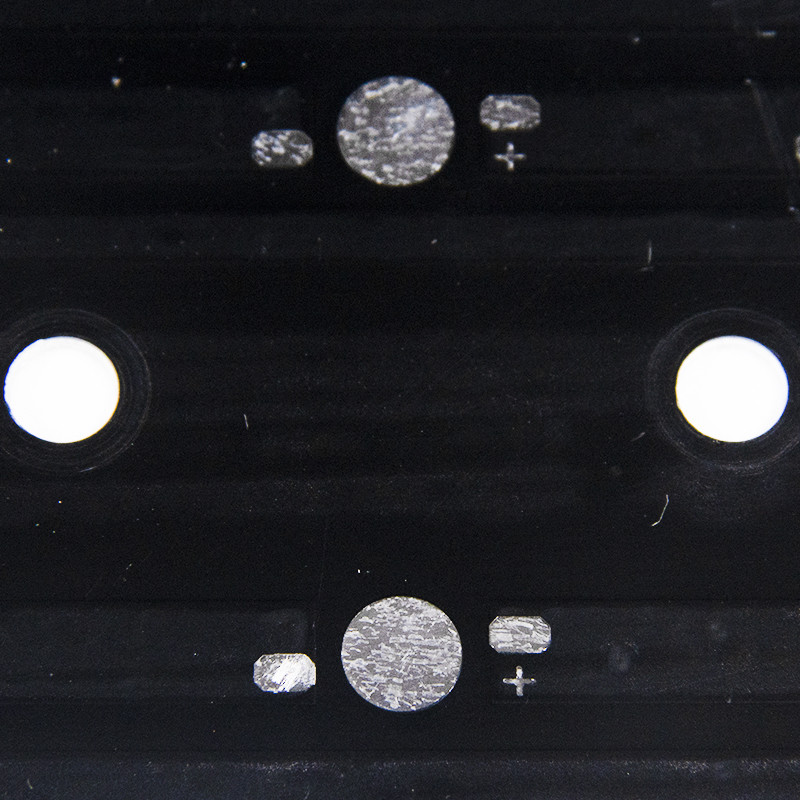

Black Multilayer Printed Circuit Board 94v0 PCB Custom LED Moude


Custom led moude multilayer printed circuit board Led Bulb 94v0 PCB

Aluminum PCB Performance: ..

Before is the performance of the aluminum Printed Circuit Board.

Thermal Dissipation

There is no denying that aluminum PCB performs efficiently in terms of thermal dissipation. These Printed Boards have the capability to dissipate heat effectively in comparison to the regular Printed Board.

Let us take an example to further demonstrate our point. Take Aluminum Printed Board along with an FR4 Printed Circuit Board. Both these boards have the same thickness i.e. 1.5mm. Despite having the same thickness, Aluminum PCB would offer a thermal resistance of 1°C/W to 2°C/W.

On the other hand, the standard Printed Circuit Board would offer between 20°C/W to 22°C/W. This clearly illustrates that Aluminum PCB is way ahead of the standard boards in case of thermal dissipation.

Thermal Expansion

Contraction and thermal expansion are the nature of every substance. However, the amount of expansion and contraction greatly depends upon the material. There is a different thermal expansion coefficient of every material.

Aluminum is an excellent choice in this regard as well. It works smoothly for contraction and the thermal expansion problem of the surface mount technology. These PCBs are completely reliable and they increase the durability of the Printed Board.

After, thermal expansion is a great problem at the aluminum PCB manufacturing end. Resolving this issue would make the Printed Circuit Board robust.

There are several other performance factors that make a good and reliable Aluminum PCB Manufacturer claim. Some of these factors are below.

  •  Aluminum Printed Circuit Boards are important for Surface Mounted Technology’s Power Devices.
  •  It is extremely efficient in terms of the expansion of the circuit design. This then, makes the desired device more reliable and efficient.
  •  Aluminum Printed Boards are also famous for improving overall product density.
  •  These boards have the capacity to effortlessly reduce operating temperatures.
  •  Their effective thermal expansion prolongs the ling of the product. Thus, improving the brand image.
  •  Aluminum PCB manufacturing is popular because of its cost-effective assembling.
  •  They help to decrease the hardware, which then results in a lower cost of the Printed Circuit Board.
  •  Their base is strong then the usually ceramic base. The base has proper mechanical endurance and great insulating property.


PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
