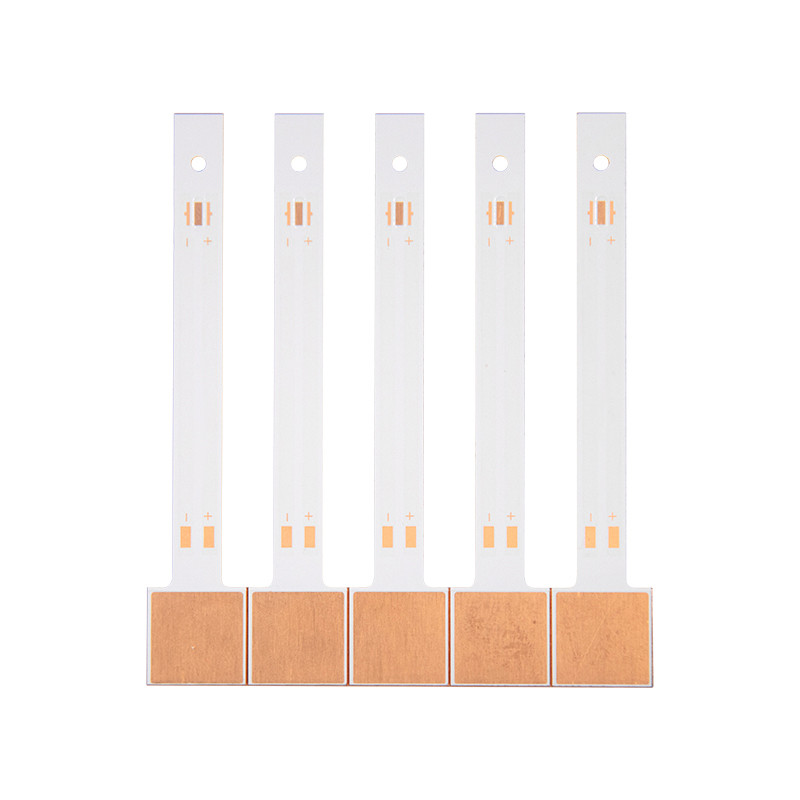

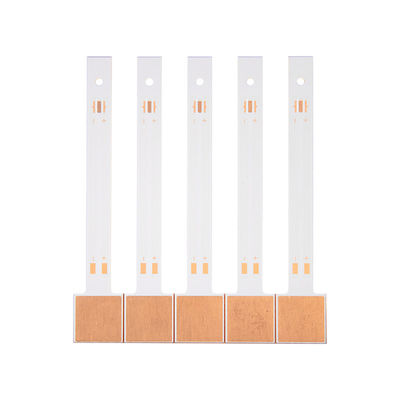

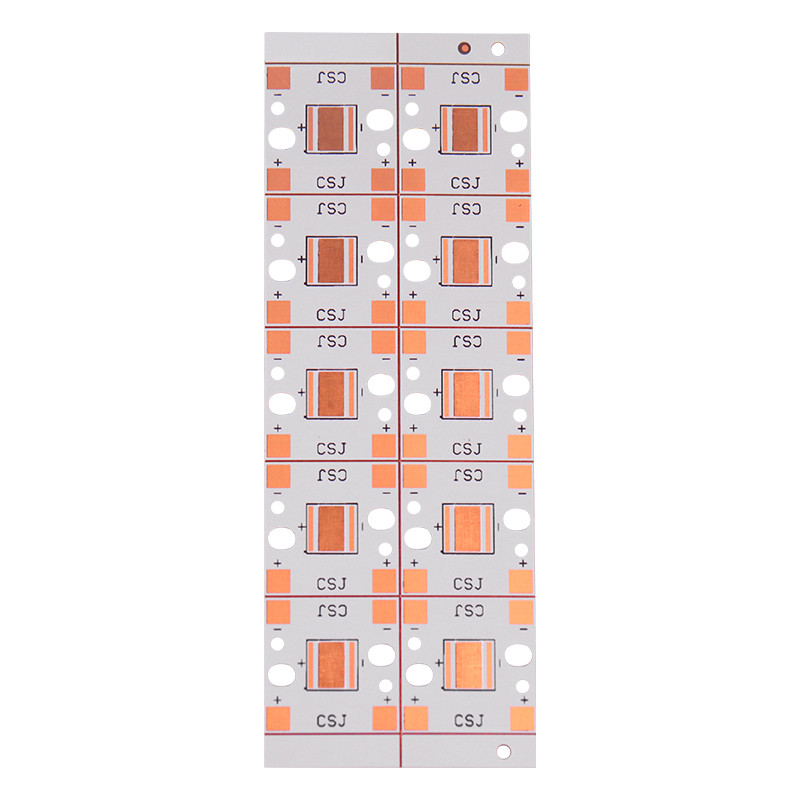

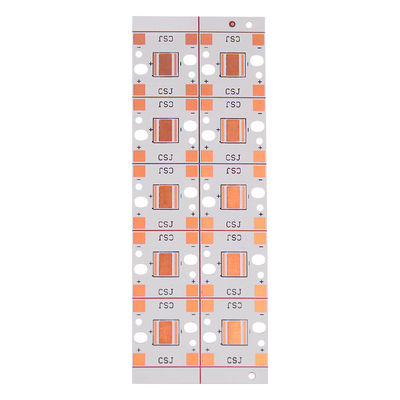

OEM RoHS Aluminium LED MCPCB Circuit Boards For Greenhouse Light
Aluminium pcb board led circuit boards OEM board for greenhouse light
A thin layer of thermally conductive but electrically insulating dielectric is laminated between a metal base and a copper foil. The copper foil is etched into the desired circuit pattern and the metal base draws heat away from this circuit through the thin dielectric.
Aluminum PCB is a unique metal-based copper clad laminate; it has good thermal conductivity, electrical insulation and machining performance. Aluminum PCB market mostly Fuchs Wright aluminum substrate. Common in the LED lighting products.
Aluminum PCB is one of metal-based pcb, including copper foil, thermal insulating layer and metal substrate, its structure divide into three layers:
|
PCBA Capabilities
|
|
|
Turnkey PCBA
|
PCB+components sourcing+assembly+package
|
|
Assembly details
|
SMT and Thru-hole, ISO SMT and DIP lines
|
|
Lead Time
|
Prototype: 15 work days. Mass order: 20~25 work days
|
|
Testing on products
|
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
|
|
Quantity
|
Min quantity: 1pcs. Prototype, small order, mass order, all OK
|
|
Files needed
|
PCB: Gerber files(CAM, PCB, PCBDOC)
|
|
Components: Bill of Materials(BOM list)
|
|
|
Assembly: Pick-N-Place file
|
|
|
PCB Panel Size
|
Min size: 0.25*0.25 inches(6*6mm)
|
|
Max size: 20*20 inches(500*500mm)
|
|
|
PCB Solder Type
|
Water Soluble Solder Paste, RoHS lead free
|
|
Components details
|
Passive Down to 0201 size
|
|
BGA and VFBGA
|
|
|
Leadless Chip Carriers/CSP
|
|
|
Double-sided SMT Assembly
|
|
|
Fine Pitch to 0.8mils
|
|
|
BGA Repair and Reball
|
|
|
Part Removal and Replacement
|
|
|
Component package
|
Cut Tape,Tube,Reels,Loose Parts
|
|
PCB assembly process
|
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
FAQ:
Q1. Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: How long is the lead time?
A: For samples, it will take 5-7 work days; for bulk orders, it will take 10-15 word days.
