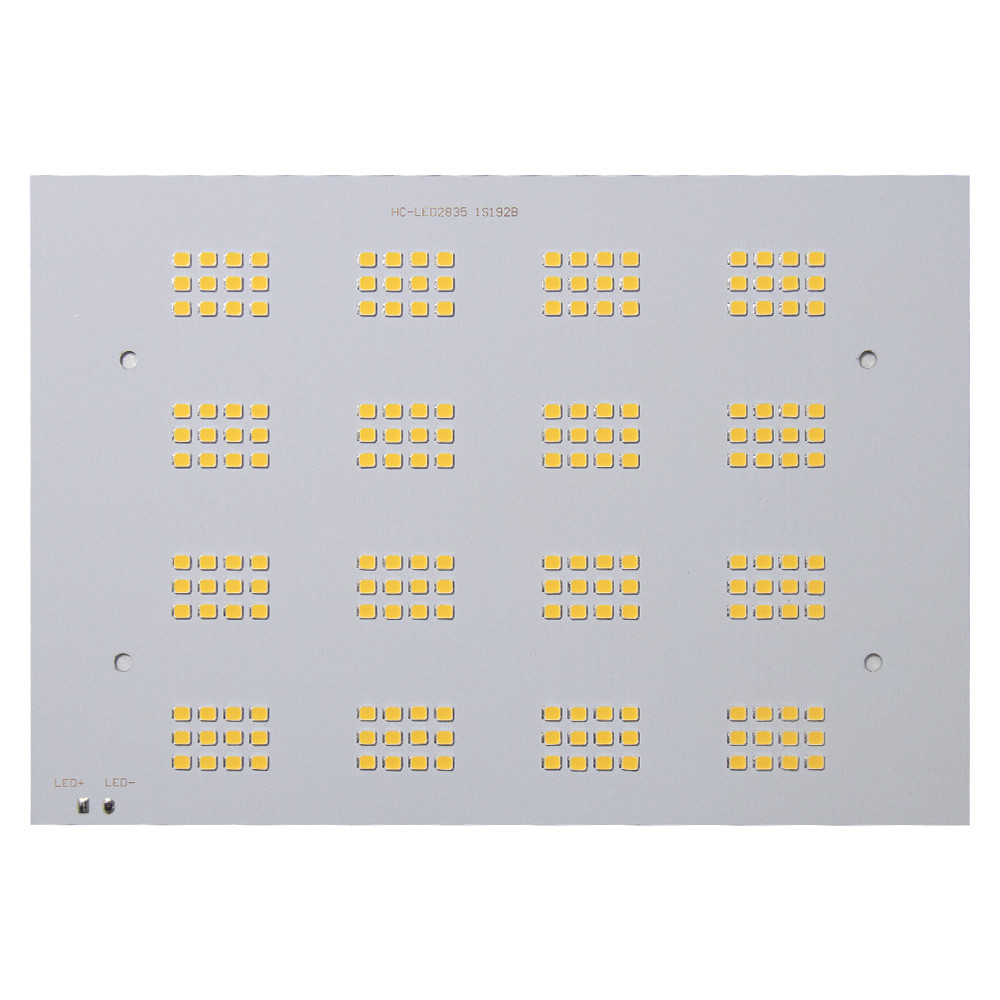

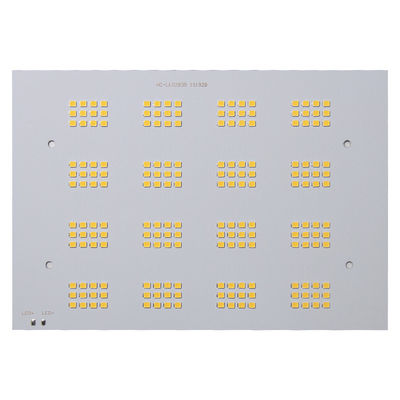

LED PCBs are typically thin for efficiency and heat dissipation, which allows for higher performance of the assemblies.
If you are working on an electronics-related project which requires the use of many light-emitting diodes (LEDs), then it is recommended to go for an LED PCB. They have many advantages and applications in the world of electronics.
This article will cover everything that you should know about LED PCBs to make sure all your doubts are cleared.
| LAYER | PROTOTYPE | MASS PRODUCTION (above 20 m2) | |
| Quick Turn | Standard Time | ||
| MC PCB | 48 hours | 4-5 days | 10-12 days |
| PFC 1 L | 48 hours | 5-6 days | 12-13 days |
| 1L | 24 hours | 3-4 days | 8-10 days |
| 2L | 24 hours | 3-4 days | 8-10 days |
| 4L | 48 hours | 5-6 days | 8-10 days |
| 6L | 72 hours | 6-7 days | 10-12 days |
| 8L | 72 hours | 7-8 days | 12-14 days |
| 10L | 96 hours | 9-10days | 16-18 days |
