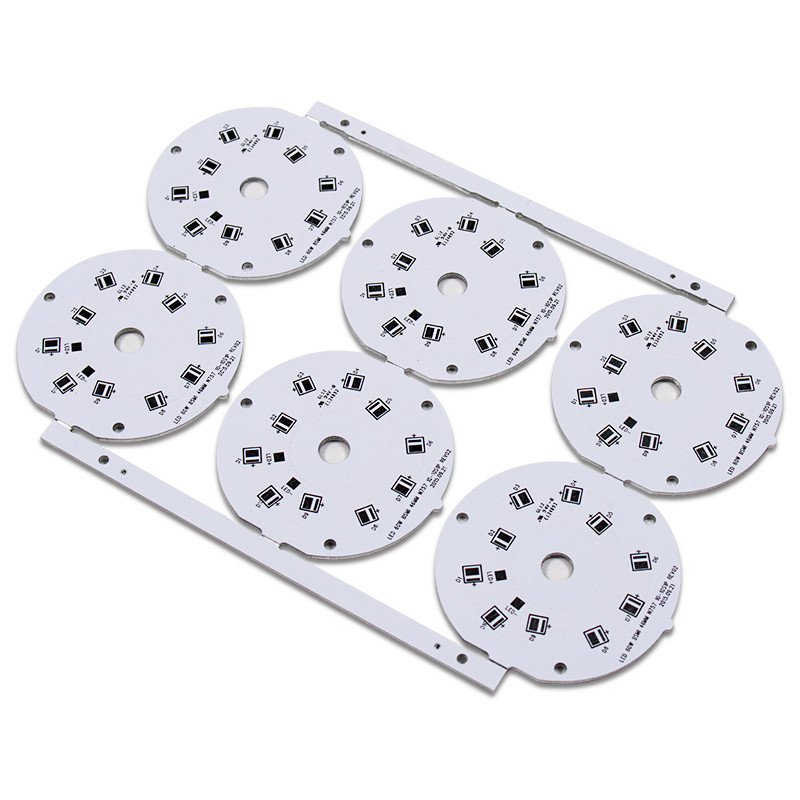

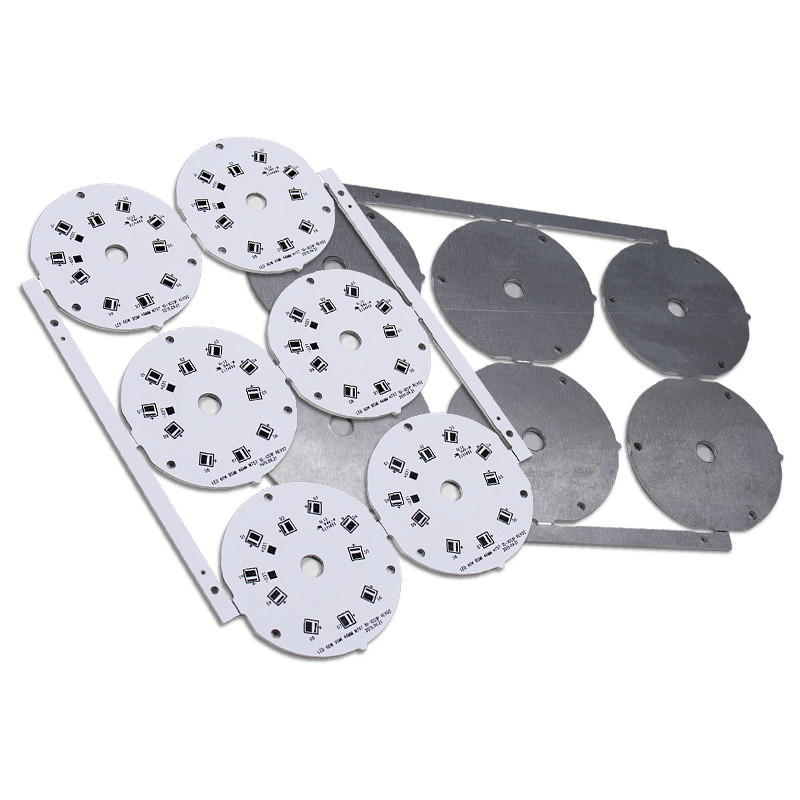

Custom Single Side Aluminum PCB 12V For LED Light
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Yizhuo
Certification: UL,CE,ROHS
Model Number: MC PCB board 05
High Light:

Custom Single Side Aluminum PCB


12V Single Side Aluminum PCB


12V Custom LED PCB

Payment & Shipping Terms
Packaging Details: Vacuum Package
Delivery Time: 10-12 work days
Payment Terms: T/T
Supply Ability: 120000 sq.m/per month
Layer: 1-2 Layers
Testing: Fixturer Testing Jig/flying Testing
Certificate: ISO9001:2008,ROHS,UL
Surface Finishing: HASL Lead Free
Silkscreen: White, Yellow, Black
Power: 3w/5w/7w/9w/12w/15w
Product Description

Custom single-side aluminum pcb 12v led light circuit board led pcb



Product Name
Pcb/DOB board
rated voltage
light color
white/warm white/cold white/red
Shelf life
2 years


Custom Single Side Aluminum PCB 12V For LED Light 0

Structure of Aluminum PCBs:

The structure of a basic Aluminum PCB is that of a Copper Clad Laminate (CCL) backed with an Aluminum base. A Copper foil and a dielectric layer make up the CCL. The Aluminum base may have an additional Aluminum base membrane as a protection.


Fig 2: Structure of an Aluminum PCB


Copper Foil Layer: Manufacturers generally use the same Copper foil as they use for regular FR-4 boards, unless the applications demand large current carrying capacity. For the latter, they use relatively heavy copper, with thickness varying from 1 to 10 ounces. The inner side of the Copper foil goes through a typical Zinc and Brass plating to improve its peel-off strength, while the top surface undergoes a chemical treatment to prevent oxidation.


Dielectric Layer: The thickness of this layer varies from 50 to 200 um, and forms the core technology of the Aluminum PCB. The dielectric layer has excellent thermal conductivity, low thermal resistance, and high electrical insulation properties. It also has excellent anti-thermal aging properties and can withstand thermal and mechanical stress.


The structure of the dielectric layer depends on the application. For instance, Universal Aluminum PCBs use a pre-preg of epoxy glass fiber as a dielectric layer, special Aluminum PCBs use resins of high thermal conductivity, and High-Frequency Aluminum PCBs use a dielectric layer with a prepreg of Polyimide or Polyolefin resin glass fiber.


Aluminum Base Layer: This is an Aluminum substrate material acting as the supporting component. Along with high thermal conductivity, the base layer must be suitable for regular mechanical manufacturing processes including cutting, punching, and drilling.



Q1. Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, UL,  SGS, ROHS.

Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
